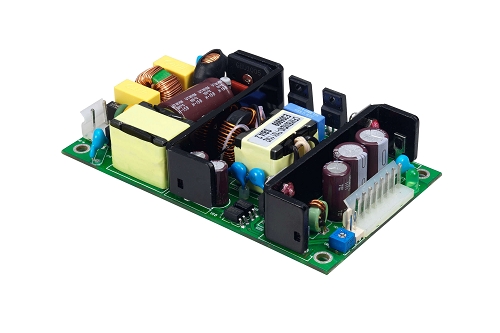

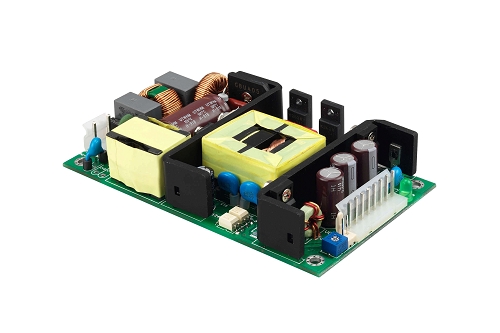

CFM150M

150Watts AC-DC 3"x5" Medical & ITE Open Frame Power Supply

CFM150M 150Watts AC-DC 3"x5" Medical & ITE Open Frame Power Supply

Universal Input Range 90 ~ 264Vac

Medical Approved

3”x 5” Compact Size

Less than 1 U High:1.05”

Industry Standard Pin Out

Active PFC Meets EN61000-3-2

High Efficiency up to 93%

Meets CISPR/FCC Class B

Remote Voltage Sense

Over Voltage Protection

Continuous Short Circuit Protection

No Load Power Consumption <0.5W

Meets 2MOPP

Meets Class I

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
NRND CFM150M120 150W 90-264 12V 12.5A 90% 3000m -20°C ~ 70°C
NRND CFM150M240 150W 90-264 24V 6.25A 92% 3000m -20°C ~ 70°C
NRND CFM150M360 150.12W 90-264 36V 4.17A 92% 3000m -20°C ~ 70°C
NRND CFM150M480 150.24W 90-264 48V 3.13A 93% 3000m -20°C ~ 70°C
