CFM20

20Watts AC-DC ITE Open Frame Power Supply

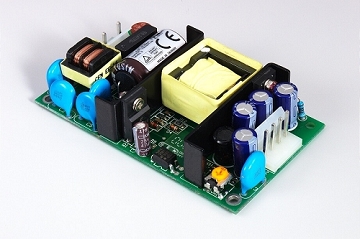

CFM20 20Watts AC-DC ITE Open Frame Power Supply

Universal Input 90 - 264VAC

Meet EN55022 Class B

Short Circuit Protection

Over Voltage Protection

Efficiency 81%

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
NRND CFM2001S 22W 85-264 5V 4.4A 72% 2000m 0°C ~ 70°C
NRND CFM2002S 21.6W 85-264 12V 1.8A 70% 2000m 0°C ~ 70°C
NRND CFM2003S 21W 85-264 15V 1.4A 80% 2000m 0°C ~ 70°C
NRND CFM2005S 22.08W 85-264 24V 0.92A 81% 2000m 0°C ~ 70°C
NRND CFM2007S 14.52W 85-264 3.3V 4.4A 66% 2000m 0°C ~ 70°C
NRND CFM2009S 22.05W 85-264 9V 2.45A 76% 2000m 0°C ~ 70°C
