CFM21M

Medical Power Solution

20Watts AC-DC Medical Open Frame Power Supply

Universal Input Range 90~264VAC

Class II

Miniature Size Low Profile 0.8"

Industry-Standard Pin Out

Efficiency to 86%

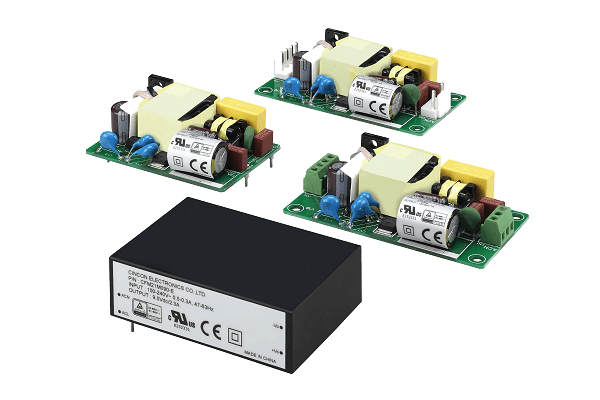

Option for On-Board, Connecter, Screw Terminal or Encapsulated type

Continuous Short Circuit Protection

Over Voltage Protection

No Load Input Power < 0.1W

Leakage Current < 100uA

UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 Medical Safety Approved

2 MOPP

Peak Load 130% (note 8)

Meet UL62368/IEC62368/EN62368

Meet UL60335-1/IEC60335-1/EN60335-1

Download File

Part Number	Power (Watts)	Input Voltage	Output Voltage	Output Current	Efficiency (%)	Operating Altitude	Operating Temperature
CFM21M050	20W	90-264	5V	4A	80%	5000m	-25°C ~ 70°C
CFM21M090	20.7W	90-264	9V	2.3A	81%	5000m	-25°C ~ 70°C
CFM21M120	20.4W	90-264	12V	1.7A	83%	5000m	-25°C ~ 70°C
CFM21M150	21W	90-264	15V	1.4A	84%	5000m	-25°C ~ 70°C
CFM21M240	21.6W	90-264	24V	0.9A	86%	5000m	-25°C ~ 70°C
CFM21M050-E	20W	90-264	5V	4A	80%	5000m	-25°C ~ 70°C
CFM21M090-E	20.7W	90-264	9V	2.3A	81%	5000m	-25°C ~ 70°C
CFM21M120-E	20.4W	90-264	12V	1.7A	83%	5000m	-25°C ~ 70°C
CFM21M150-E	21W	90-264	15V	1.4A	84%	5000m	-25°C ~ 70°C
CFM21M240-E	21.6W	90-264	24V	0.9A	86%	5000m	-25°C ~ 70°C
CFM21M050-S	20W	90-264	5V	4A	80%	5000m	-25°C ~ 70°C
CFM21M090-S	20.7W	90-264	9V	2.3A	81%	5000m	-25°C ~ 70°C
CFM21M120-S	20.4W	90-264	12V	1.7A	83%	5000m	-25°C ~ 70°C
CFM21M150-S	21W	90-264	15V	1.4A	84%	5000m	-25°C ~ 70°C
CFM21M240-S	21.6W	90-264	24V	0.9A	86%	5000m	-25°C ~ 70°C
CFM21M050-T	20W	90-264	5V	4A	80%	5000m	-25°C ~ 70°C
CFM21M090-T	20.7W	90-264	9V	2.3A	81%	5000m	-25°C ~ 70°C
CFM21M120-T	20.4W	90-264	12V	1.7A	83%	5000m	-25°C ~ 70°C
CFM21M150-T	21W	90-264	15V	1.4A	84%	5000m	-25°C ~ 70°C
CFM21M240-T	21.6W	90-264	24V	0.9A	86%	5000m	-25°C ~ 70°C
