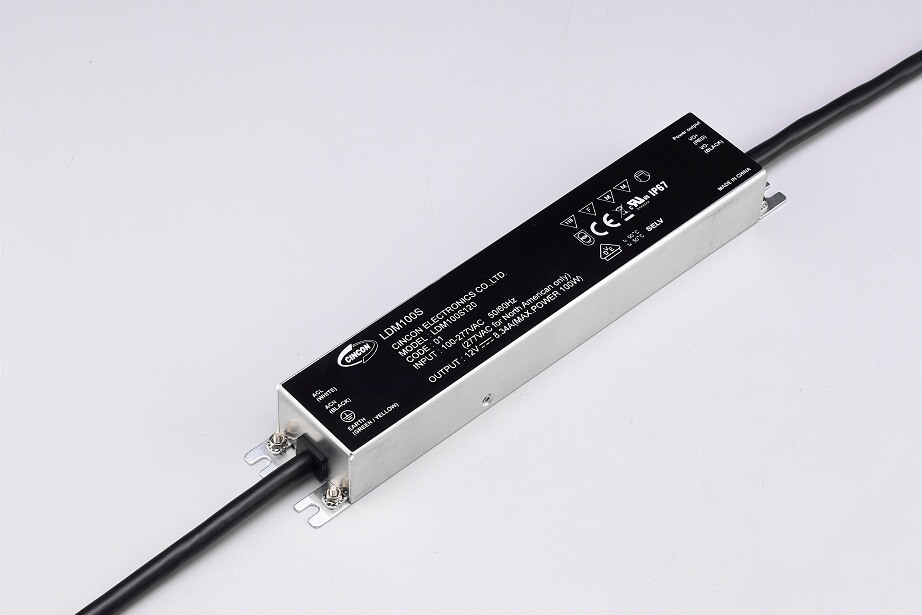

LDM100S

100Watts AC-DC CC+CV Mode Digital / 1-10V / PWM Dimming LED Driver

LDM100S 100Watts AC-DC CC+CV Mode Digital / 1-10V / PWM Dimming LED Driver

Universal Input 90~305Vac or 127-420Vdc

High Efficiency up to 90%

Meets EN55015, EN61000-3-2 Class C

Meets LVD EN61347-1, EN61347-2-13

Approval UL8750

Active PFC Function

IP67 Design for Indoor or Outdoor Installations

Max. Output power 100W

Dimming Function: Digital (Optional)

Protections: Short circuit, Over Current, Over Voltage and Over Temperature

Constant Voltage and Constant Current

No Load Power Consumption<0.5W

3 Years Warranty

Download File
Part Number Efficiency Watt Input Voltage Output Voltage Output Current Dimming
  LDM100S120-01 88% 100W 90-305VAC 6.5-12V 8.34A Fixed
  LDM100S240-01 89% 100W 90-305VAC 13-24V 4.17A Fixed
  LDM100S360-01 90% 100W 90-305VAC 19-36V 2.78A Fixed
  LDM100S480-01 90% 100W 90-305VAC 26-48V 2.08A Fixed
  LDM100S120-02 88% 100W 90-305VAC 6.5-12V 5.3-8.34A Fixed
  LDM100S240-02 89% 100W 90-305VAC 13-24V 2.6-4.17A Fixed
  LDM100S360-02 90% 100W 90-305VAC 19-36V 1.74-2.78A Fixed
  LDM100S480-02 90% 100W 90-305VAC 26-48V 1.3-2.08A Fixed
  LDM100S120-04 88% 100W 90-305VAC 6.5-12V 8.34A Digital
  LDM100S240-04 89% 100W 90-305VAC 13-24V 4.17A Digital
  LDM100S360-04 90% 100W 90-305VAC 19-36V 2.78A Digital
  LDM100S480-04 90% 100W 90-305VAC 26-48V 2.08A Digital
  LDM100S120-04A 88% 100W 90-305VAC 6.5-12V 5.3-8.34A Digital
  LDM100S240-04A 89% 100W 90-305VAC 13-24V 2.6-4.17A Digital
  LDM100S360-04A 90% 100W 90-305VAC 19-36V 1.74-2.78A Digital
  LDM100S480-04A 90% 100W 90-305VAC 26-48V 1.3-2.08A Digital
