SMT16W-12

EOL Products

16 AMP DC-DC CONVERTER

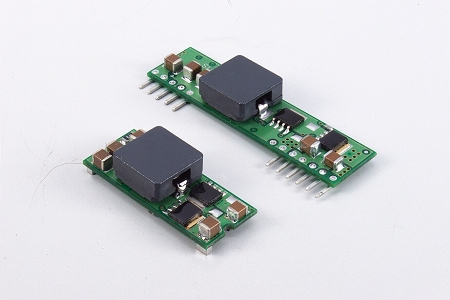

SMT16W-12 16 AMP DC-DC CONVERTER

*EOL Effective Date: Aug/31/2022*

Non-Isolated POL Converter

SIP/SMT Package

Output Current 16AMP

Input Voltage Range 6.0 –14VDC

Output Voltage Range 0.7525–5.0VDC

300KHz Switching Frequency

High Efficiency to 94%

Over Temperature Protection

Continuous Short Circuit Protection

Remote On/Off Control

Output Voltage Sequencing

Power Good Signal

UL/C-UL60950 Certified

Safety Meets IEC/EN/UL 62368-1

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
　 SMT16W-12S05A 6~14V 0.7525~5V 16A 40~95mA 80~94 NONE
　 SMT16W-12S05AN 6~14V 0.7525~5V 16A 40~95mA 80~94 NONE
