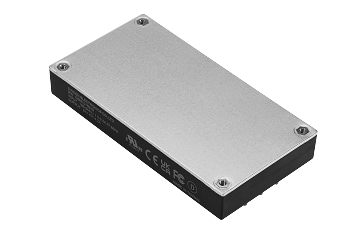

CBM101S

AC-DC Brick

100Watts AC-DC Brick Power Supply

Universal Input Range 90~264Vac

High Efficiency up to 94.5%

Class I

No Load Input Power Consumption<0.5W

Peak Power Operation up to 120Watt for 5s

Approval IEC/EN/UL 62368-1

Approval EN55032 and CISPR/FCC Class B

Operating Altitude 5000m

Continuous Short Circuit Protection

Over Voltage Protection

Over Temperature Protection

Low Inrush Current < 8.5A

17mm Ultra Low Profile Package

Full Load without Heat Sink

No Fan Required

Built-in EMI Filters Bulk Capacitor and Output Capacitors

Wide Operating Temperature Range

Download File

	Part Number	Power (Watts)	Input Voltage	Output Voltage	Output Current	Efficiency (%)	Operating Altitude	Operating Temperature
NEW	CBM101S120	100.8W	90-264	12V	8.4A	93.5	5000m	-40°C ~ 85°C
NEW	CBM101S240	100.8W	90-264	24V	4.2A	94.5	5000m	-40°C ~ 85°C
NEW	CBM101S280	100.8W	90-264	28V	3.6A	94.5	5000m	-40°C ~ 85°C
NEW	CBM101S360	100.8W	90-264	36V	2.8A	94.5	5000m	-40°C ~ 85°C
NEW	CBM101S480	100.8W	90-264	48V	2.1A	94.5	5000m	-40°C ~ 85°C
