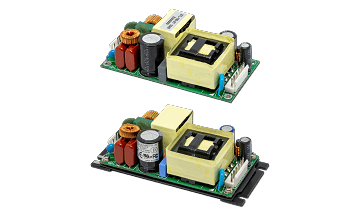

CFM150S

Open Frame

150Watts AC-DC 2’’ x4’’ ITE Open Frame Baseplate-cooled Power Supply

Universal Input Range 90~264Vac

High Efficiency up to 94%

2”x 4” Open Frame Compact Size

Class I & Class II

120W with Natural Convection (CFM150SXXX)

150W with Natural Convection (CFM150SXXXB)

Peak Power Operation up to 180Watt for 5s

No Load Input Power Consumption<150mW

Approval Safety IEC/EN/UL 62368-1 Ed 3.0

Operating Altitude 5000m

Continuous Short Circuit Protection

Over Voltage Protection

Active PFC Function

Download File

Part Number	Power (Watts)	Input Voltage	Output Voltage	Output Current	Efficiency (%)	Operating Altitude	Operating Temperature
CFM150S120	120W	90-264	12V	10.0A	93%	5000m	-30°C ~ 80°C
CFM150S240	120W	90-264	24V	5.0A	94%	5000m	-30°C ~ 80°C
CFM150S280	119.84W	90-264	28V	4.28A	94%	5000m	-30°C ~ 80°C
CFM150S360	119.88W	90-264	36V	3.33A	94%	5000m	-30°C ~ 80°C
CFM150S480	120W	90-264	48V	2.5A	94%	5000m	-30°C ~ 80°C
CFM150S120-B	150W	90-264	12V	12.5A	93%	5000m	-30°C ~ 80°C
CFM150S240-B	150W	90-264	24V	6.25A	94%	5000m	-30°C ~ 80°C
CFM150S280-B	149.8W	90-264	28V	5.35A	94%	5000m	-30°C ~ 80°C
CFM150S360-B	149.76W	90-264	36V	4.16A	94%	5000m	-30°C ~ 80°C
CFM150S480-B	150W	90-264	48V	3.125A	94%	5000m	-30°C ~ 80°C
