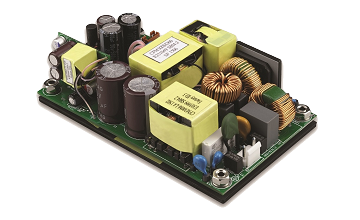

CFM300S

300Watts AC-DC 3" x 5" ITE Open Frame Baseplate-cooled Power Supply

CFM300S

Universal Input Range 90 ~ 264Vac

Active PFC Meets EN61000-3-2 Class C&D

High Efficiency up to 94%

High Power Density up to 14.1W/Inch3

Over Temperature Protection

Continuous Short Circuit Protection

Remote Voltage Sense

PS On/Off Remote Control

Power Good & Power Fail Signal

+5V Stand-by Output Power

12V Fan Output

No Load Power Consumption<0.3W NOTE6

3”x 5” Size

Meets EN55032 and EN55022 Class B

IEC/EN/UL 62368-1 Approval

Meets IEC/EN 60335-1

Meets Class I

Download File
Model List
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
CFM300S120 300W 90-264 12V 25A 92.50% 5000m -20°C ~ 80°C
CFM300S240 300W 90-264 24V 12.5A 93.50% 5000m -20°C ~ 80°C
CFM300S360 300.24W 90-264 36V 8.34A 93.50% 5000m -20°C ~ 80°C
CFM300S480 300W 90-264 48V 6.25A 94% 5000m -20°C ~ 80°C
CFM300S120C 300W 90-264 12V 25A 92.50% 5000m -20°C ~ 80°C
CFM300S240C 300W 90-264 24V 12.5A 93.50% 5000m -20°C ~ 80°C
CFM300S360C 300.24W 90-264 36V 8.34A 93.50% 5000m -20°C ~ 80°C
CFM300S480C 300W 90-264 48V 6.25A 94% 5000m -20°C ~ 80°C
