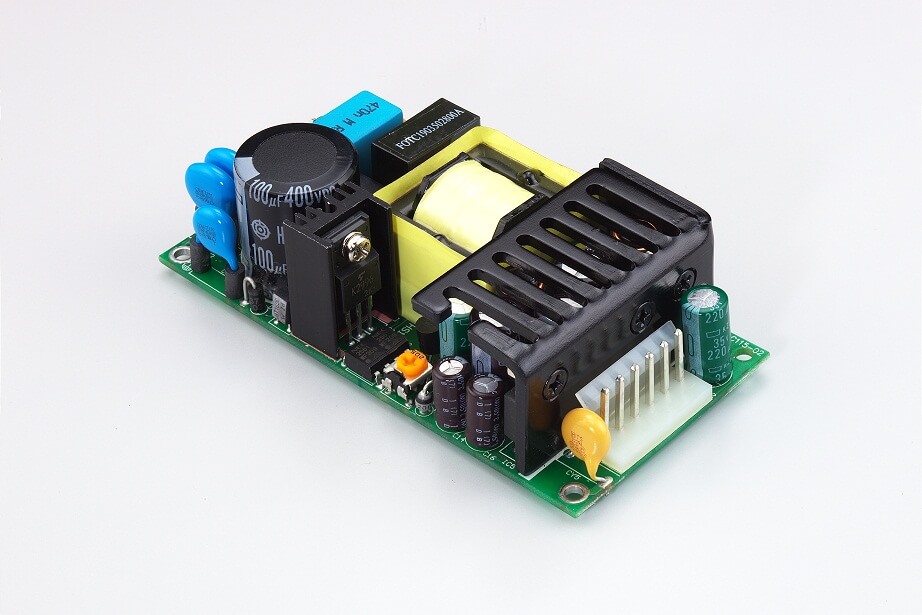

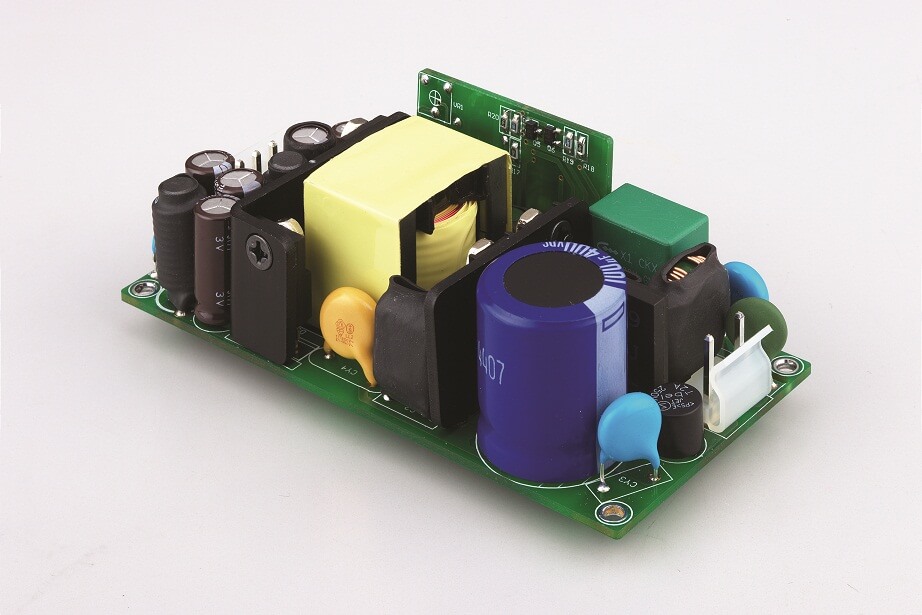

CFM60T

60Watts AC-DC 2"x4" ITE Open Frame Power Supply with Triple Outputs

CFM60T 60Watts AC-DC 2"x4" ITE Open Frame Power Supply with Triple Outputs

Universal Input: 90~264Vac

2” x 4” Size

Industry-Standard Pin Out

Efficiency to 83%

Short Circuit Protection

Meets EN61204-3 Class B and CISPR/FCC Class B

Approved IEC/EN/UL62368-1

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
  CFM60T-01 62W 90-264 5V/12V/-12V 4A/3A/0.5A 83% 2000m 0°C ~ 60°C
  CFM60T-02 62W 90-264 5V/15V/-15V 4A/2.5A/0.3A 83% 2000m 0°C ~ 60°C
  CFM60T-03 62W 90-264 5V/24V/-12V 4A/1.5A/0.5A 83% 2000m 0°C ~ 60°C
  CFM60T-04 40.8W 90-264 3.3V/5V/-12V 6A/3A/0.5A 78% 2000m 0°C ~ 60°C
