CFM61S

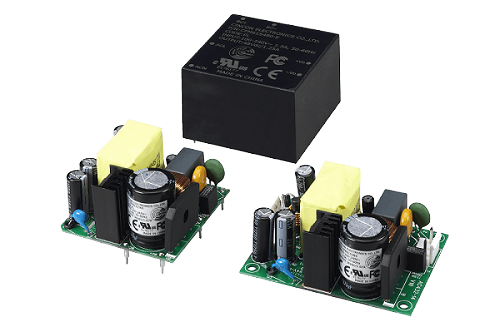

60Watts AC-DC 2’’x2’’ ITE Open Frame Power Supply with Peak Load

CFM61S 60Watts AC-DC 2’’x2’’ ITE Open Frame Power Supply with Peak Load

Universal Input Range 90~264Vac

High Efficiency up to 90%

2”x 2” Compact Size

Class II

No Load Input Power Consumption < 0.15W

Approved IEC/EN/UL 62368-1 Ed 3.0

Approved EN55032 and CISPR/FCC Class B

Continuous Short Circuit Protection

Over Voltage Protection

Peak Load (2 Times of Rated Current)

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature Package Datasheet Find stock RFQ
　 CFM61S050 40W 90-264 5V 8.0A 86% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S120 60W 90-264 12V 5.0A 88% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S150 60W 90-264 15V 4.0A 88% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S240 60W 90-264 24V 2.5A 89% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S360 60.12W 90-264 36V 1.67A 89% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S480 60W 90-264 48V 1.25A 90% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S050 PL 40W 90-264 5V 8.0A 86% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S120 PL 60W 90-264 12V 5.0A 88% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S150 PL 60W 90-264 15V 4.0A 88% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S240 PL 60W 90-264 24V 2.5A 89% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S360 PL 60.12W 90-264 36V 1.67A 89% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S480 PL 60W 90-264 48V 1.25A 90% 5000m -30°C ~ 80°C On-Board Open Frame Stock RFQ
　 CFM61S050-E 40W 90-264 5V 8.0A 86% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S120-E 60W 90-264 12V 5.0A 88% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S150-E 60W 90-264 15V 4.0A 88% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S240-E 60W 90-264 24V 2.5A 89% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S360-E 60.12W 90-264 36V 1.67A 89% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S480-E 60W 90-264 48V 1.25A 90% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S050-E PL 40W 90-264 5V 8.0A 86% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S120-E PL 60W 90-264 12V 5.0A 88% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S150-E PL 60W 90-264 15V 4.0A 88% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S240-E PL 60W 90-264 24V 2.5A 89% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S360-E PL 60.12W 90-264 36V 1.67A 89% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S480-E PL 60W 90-264 48V 1.25A 90% 5000m -30°C ~ 80°C Encapsulated Stock RFQ
　 CFM61S050-T 40W 90-264 5V 8.0A 86% 5000m -30°C ~ 80°C Connecter Open Frame Stock RFQ
　 CFM61S120-T 60W 90-264 12V 5.0A 88% 5000m -30°C ~ 80°C Connecter Open Frame Stock RFQ
　 CFM61S150-T 60W 90-264 15V 4.0A 88% 5000m -30°C ~ 80°C Connecter Open Frame Stock RFQ
　 CFM61S240-T 60W 90-264 24V 2.5A 89% 5000m -30°C ~ 80°C Connecter Open Frame Stock RFQ
　 CFM61S360-T 60.12W 90-264 36V 1.67A 89% 5000m -30°C ~ 80°C Connecter Open Frame Stock RFQ
　 CFM61S480-T 60W 90-264 48V 1.25A 90% 5000m -30°C ~ 80°C Connecter Open Frame Stock RFQ
