CHB200W-110SXX-CMFC(D)

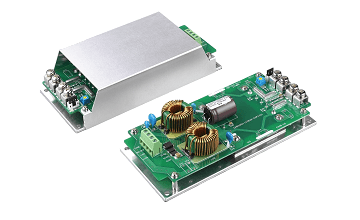

200Watts Half Brick Chassis Mount Railway DC-DC Converter Module

CHB200W-110SXX-CMFC(D) 200Watts Half Brick Chassis Mount Railway DC-DC Converter Module

Efficiency to 90.5%

Fixed Switching Frequency

Regulated Outputs

Remote On/Off

Low No Load Power Consumption

Fully Protected (OTP/OCP/OVP/UVLO)

3000Vdc I/O Isolation

Operating Case Temperature -40 to +100℃

UL 60950-1 2nd (Basic Insulation) Approval for DC Modules

EN 50155 for EMC, Environmental and Characteristic

Shock & Vibration EN 50155 (EN 61373) Compliant

Fire & Smoke EN 45545-2 Compliant

Safety Meets IEC/EN/UL 62368-1

Build-In EMI Filter

Chassis Mount, Baseplate Cooled

Download File
MODEL
NUMBER		 Input Output Output Current Input Current % EFF
Min Max No Load Full Load
CHB200W-110S05□-CMFC
CHB200W-110S05□-CMFD		 43-160V 5V 0mA 40.0A 15mA 2077mA 87.5
CHB200W-110S12□-CMFC
CHB200W-110S12□-CMFD		 43-160V 12V 0mA 16.7A 15mA 2035mA 90.5
CHB200W-110S24□-CMFC
CHB200W-110S24□-CMFD		 43-160V 24V 0mA 8.3A 15mA 2034mA 89
CHB200W-110S28□-CMFC
CHB200W-110S28□-CMFD		 43-160V 28V 0mA 7.14A 15mA 2042mA 89
CHB200W-110S48□-CMFC
CHB200W-110S48□-CMFD		 43-160V 48V 0mA 4.2A 15mA 2025mA 90.5



Note:



  • □ = N or None
