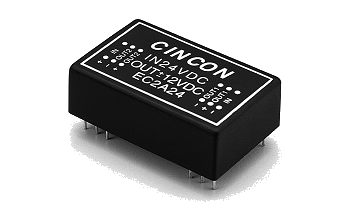

1.5Watts DIP-24 Isolated DC-DC Converter

EC2A 1.5Watts DIP-24 Isolated DC-DC Converter

1.5W Output Power

DIP-24/SMD Package

Efficiency to 50%

Regulated Outputs

PI Input Filter

Low Ripple and Noise

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
NRND EC2A01 4.5~5.5V 5V 0.3A 110mA 50 500VDC
NRND EC2A02 4.5~5.5V 12V 0.125A 110mA 50 500VDC
NRND EC2A03 4.5~5.5V 15V 0.1A 110mA 50 500VDC
NRND EC2A04 4.5~5.5V ±12V ±0.06A 110mA 50 500VDC
NRND EC2A05 4.5~5.5V ±15V ±0.05A 110mA 50 500VDC
NRND EC2A11 10.8~13.2V 5V 0.3A 40mA 50 500VDC
NRND EC2A12 10.8~13.2V 12V 0.125A 40mA 50 500VDC
NRND EC2A13 10.8~13.2V 15V 0.1A 40mA 50 500VDC
NRND EC2A14 10.8~13.2V ±12V ±0.06A 40mA 50 500VDC
NRND EC2A15 10.8~13.2V ±15V ±0.05A 40mA 50 500VDC
NRND EC2A21 21.6~26.4V 5V 0.3A 20mA 50 500VDC
NRND EC2A22 21.6~26.4V 12V 0.125A 20mA 50 500VDC
NRND EC2A23 21.6~26.4V 15V 0.1A 20mA 50 500VDC
NRND EC2A24 21.6~26.4V ±12V ±0.06A 20mA 50 500VDC
NRND EC2A25 21.6~26.4V ±15V ±0.05A 20mA 50 500VDC
NRND EC2A31 25.2~30.8V 5V 0.3A 20mA 50 500VDC
NRND EC2A32 25.2~30.8V 12V 0.125A 20mA 50 500VDC
NRND EC2A33 25.2~30.8V 15V 0.1A 20mA 50 500VDC
NRND EC2A34 25.2~30.8V ±12V ±0.06A 20mA 50 500VDC
NRND EC2A35 25.2~30.8V ±15V ±0.05A 20mA 50 500VDC
NRND EC2A41 43.2~52.8V 5V 0.3A 15mA 50 500VDC
NRND EC2A42 43.2~52.8V 12V 0.125A 15mA 50 500VDC
NRND EC2A43 43.2~52.8V 15V 0.1A 15mA 50 500VDC
NRND EC2A44 43.2~52.8V ±12V ±0.06A 15mA 50 500VDC
NRND EC2A45 43.2~52.8V ±15V ±0.05A 15mA 50 500VDC
NRND EC2A01M 4.5~5.5V 5V 0.3A 110mA 50 500VDC
NRND EC2A02M 4.5~5.5V 12V 0.125A 110mA 50 500VDC
NRND EC2A03M 4.5~5.5V 15V 0.1A 110mA 50 500VDC
NRND EC2A04M 4.5~5.5V ±12V ±0.06A 110mA 50 500VDC
NRND EC2A05M 4.5~5.5V ±15V ±0.05A 110mA 50 500VDC
NRND EC2A11M 10.8~13.2V 5V 0.3A 40mA 50 500VDC
NRND EC2A12M 10.8~13.2V 12V 0.125A 40mA 50 500VDC
NRND EC2A13M 10.8~13.2V 15V 0.1A 40mA 50 500VDC
NRND EC2A14M 10.8~13.2V ±12V ±0.06A 40mA 50 500VDC
NRND EC2A15M 10.8~13.2V ±15V ±0.05A 40mA 50 500VDC
NRND EC2A21M 21.6~26.4V 5V 0.3A 20mA 50 500VDC
NRND EC2A22M 21.6~26.4V 12V 0.125A 20mA 50 500VDC
NRND EC2A23M 21.6~26.4V 15V 0.1A 20mA 50 500VDC
NRND EC2A24M 21.6~26.4V ±12V ±0.06A 20mA 50 500VDC
NRND EC2A25M 21.6~26.4V ±15V ±0.05A 20mA 50 500VDC
NRND EC2A31M 25.2~30.8V 5V 0.3A 20mA 50 500VDC
NRND EC2A32M 25.2~30.8V 12V 0.125A 20mA 50 500VDC
NRND EC2A33M 25.2~30.8V 15V 0.1A 20mA 50 500VDC
NRND EC2A34M 25.2~30.8V ±12V ±0.06A 20mA 50 500VDC
NRND EC2A35M 25.2~30.8V ±15V ±0.05A 20mA 50 500VDC
NRND EC2A41M 43.2~52.8V 5V 0.3A 15mA 50 500VDC
NRND EC2A42M 43.2~52.8V 12V 0.125A 15mA 50 500VDC
NRND EC2A43M 43.2~52.8V 15V 0.1A 15mA 50 500VDC
NRND EC2A44M 43.2~52.8V ±12V ±0.06A 15mA 50 500VDC
NRND EC2A45M 43.2~52.8V ±15V ±0.05A 15mA 50 500VDC
NRND EC2A01MS 4.5~5.5V 5V 0.3A 110mA 50 500VDC
NRND EC2A02MS 4.5~5.5V 12V 0.125A 110mA 50 500VDC
NRND EC2A03MS 4.5~5.5V 15V 0.1A 110mA 50 500VDC
NRND EC2A04MS 4.5~5.5V ±12V ±0.06A 110mA 50 500VDC
NRND EC2A05MS 4.5~5.5V ±15V ±0.05A 110mA 50 500VDC
NRND EC2A11MS 10.8~13.2V 5V 0.3A 40mA 50 500VDC
NRND EC2A12MS 10.8~13.2V 12V 0.125A 40mA 50 500VDC
NRND EC2A13MS 10.8~13.2V 15V 0.1A 40mA 50 500VDC
NRND EC2A14MS 10.8~13.2V ±12V ±0.06A 40mA 50 500VDC
NRND EC2A15MS 10.8~13.2V ±15V ±0.05A 40mA 50 500VDC
NRND EC2A21MS 21.6~26.4V 5V 0.3A 20mA 50 500VDC
NRND EC2A22MS 21.6~26.4V 12V 0.125A 20mA 50 500VDC
NRND EC2A23MS 21.6~26.4V 15V 0.1A 20mA 50 500VDC
NRND EC2A24MS 21.6~26.4V ±12V ±0.06A 20mA 50 500VDC
NRND EC2A25MS 21.6~26.4V ±15V ±0.05A 20mA 50 500VDC
NRND EC2A31MS 25.2~30.8V 5V 0.3A 20mA 50 500VDC
NRND EC2A32MS 25.2~30.8V 12V 0.125A 20mA 50 500VDC
NRND EC2A33MS 25.2~30.8V 15V 0.1A 20mA 50 500VDC
NRND EC2A34MS 25.2~30.8V ±12V ±0.06A 20mA 50 500VDC
NRND EC2A35MS 25.2~30.8V ±15V ±0.05A 20mA 50 500VDC
NRND EC2A41MS 43.2~52.8V 5V 0.3A 15mA 50 500VDC
NRND EC2A42MS 43.2~52.8V 12V 0.125A 15mA 50 500VDC
NRND EC2A43MS 43.2~52.8V 15V 0.1A 15mA 50 500VDC
NRND EC2A44MS 43.2~52.8V ±12V ±0.06A 15mA 50 500VDC
NRND EC2A45MS 43.2~52.8V ±15V ±0.05A 15mA 50 500VDC
NRND EC2A01H 4.5~5.5V 5V 0.3A 110mA 50 3000VDC
NRND EC2A02H 4.5~5.5V 12V 0.125A 110mA 50 3000VDC
NRND EC2A03H 4.5~5.5V 15V 0.1A 110mA 50 3000VDC
NRND EC2A04H 4.5~5.5V ±12V ±0.06A 110mA 50 3000VDC
NRND EC2A05H 4.5~5.5V ±15V ±0.05A 110mA 50 3000VDC
NRND EC2A11H 10.8~13.2V 5V 0.3A 40mA 50 3000VDC
NRND EC2A12H 10.8~13.2V 12V 0.125A 40mA 50 3000VDC
NRND EC2A13H 10.8~13.2V 15V 0.1A 40mA 50 3000VDC
NRND EC2A14H 10.8~13.2V ±12V ±0.06A 40mA 50 3000VDC
NRND EC2A15H 10.8~13.2V ±15V ±0.05A 40mA 50 3000VDC
NRND EC2A21H 21.6~26.4V 5V 0.3A 20mA 50 3000VDC
NRND EC2A22H 21.6~26.4V 12V 0.125A 20mA 50 3000VDC
NRND EC2A23H 21.6~26.4V 15V 0.1A 20mA 50 3000VDC
NRND EC2A24H 21.6~26.4V ±12V ±0.06A 20mA 50 3000VDC
NRND EC2A25H 21.6~26.4V ±15V ±0.05A 20mA 50 3000VDC
NRND EC2A31H 25.2~30.8V 5V 0.3A 20mA 50 3000VDC
NRND EC2A32H 25.2~30.8V 12V 0.125A 20mA 50 3000VDC
NRND EC2A33H 25.2~30.8V 15V 0.1A 20mA 50 3000VDC
NRND EC2A34H 25.2~30.8V ±12V ±0.06A 20mA 50 3000VDC
NRND EC2A35H 25.2~30.8V ±15V ±0.05A 20mA 50 3000VDC
NRND EC2A41H 43.2~52.8V 5V 0.3A 15mA 50 3000VDC
NRND EC2A42H 43.2~52.8V 12V 0.125A 15mA 50 3000VDC
NRND EC2A43H 43.2~52.8V 15V 0.1A 15mA 50 3000VDC
NRND EC2A44H 43.2~52.8V ±12V ±0.06A 15mA 50 3000VDC
NRND EC2A45H 43.2~52.8V ±15V ±0.05A 15mA 50 3000VDC
NRND EC2A01HM 4.5~5.5V 5V 0.3A 110mA 50 1500VDC
NRND EC2A02HM 4.5~5.5V 12V 0.125A 110mA 50 1500VDC
NRND EC2A03HM 4.5~5.5V 15V 0.1A 110mA 50 1500VDC
NRND EC2A04HM 4.5~5.5V ±12V ±0.06A 110mA 50 1500VDC
NRND EC2A05HM 4.5~5.5V ±15V ±0.05A 110mA 50 1500VDC
NRND EC2A11HM 10.8~13.2V 5V 0.3A 40mA 50 1500VDC
NRND EC2A12HM 10.8~13.2V 12V 0.125A 40mA 50 1500VDC
NRND EC2A13HM 10.8~13.2V 15V 0.1A 40mA 50 1500VDC
NRND EC2A14HM 10.8~13.2V ±12V ±0.06A 40mA 50 1500VDC
NRND EC2A15HM 10.8~13.2V ±15V ±0.05A 40mA 50 1500VDC
NRND EC2A21HM 21.6~26.4V 5V 0.3A 20mA 50 1500VDC
NRND EC2A22HM 21.6~26.4V 12V 0.125A 20mA 50 1500VDC
NRND EC2A23HM 21.6~26.4V 15V 0.1A 20mA 50 1500VDC
NRND EC2A24HM 21.6~26.4V ±12V ±0.06A 20mA 50 1500VDC
NRND EC2A25HM 21.6~26.4V ±15V ±0.05A 20mA 50 1500VDC
NRND EC2A31HM 25.2~30.8V 5V 0.3A 20mA 50 1500VDC
NRND EC2A32HM 25.2~30.8V 12V 0.125A 20mA 50 1500VDC
NRND EC2A33HM 25.2~30.8V 15V 0.1A 20mA 50 1500VDC
NRND EC2A34HM 25.2~30.8V ±12V ±0.06A 20mA 50 1500VDC
NRND EC2A35HM 25.2~30.8V ±15V ±0.05A 20mA 50 1500VDC
NRND EC2A41HM 43.2~52.8V 5V 0.3A 15mA 50 1500VDC
NRND EC2A42HM 43.2~52.8V 12V 0.125A 15mA 50 1500VDC
NRND EC2A43HM 43.2~52.8V 15V 0.1A 15mA 50 1500VDC
NRND EC2A44HM 43.2~52.8V ±12V ±0.06A 15mA 50 1500VDC
NRND EC2A45HM 43.2~52.8V ±15V ±0.05A 15mA 50 1500VDC
NRND EC2A01HMS 4.5~5.5V 5V 0.3A 110mA 50 1500VDC
NRND EC2A02HMS 4.5~5.5V 12V 0.125A 110mA 50 1500VDC
NRND EC2A03HMS 4.5~5.5V 15V 0.1A 110mA 50 1500VDC
NRND EC2A04HMS 4.5~5.5V ±12V ±0.06A 110mA 50 1500VDC
NRND EC2A05HMS 4.5~5.5V ±15V ±0.05A 110mA 50 1500VDC
NRND EC2A11HMS 10.8~13.2V 5V 0.3A 40mA 50 1500VDC
NRND EC2A12HMS 10.8~13.2V 12V 0.125A 40mA 50 1500VDC
NRND EC2A13HMS 10.8~13.2V 15V 0.1A 40mA 50 1500VDC
NRND EC2A14HMS 10.8~13.2V ±12V ±0.06A 40mA 50 1500VDC
NRND EC2A15HMS 10.8~13.2V ±15V ±0.05A 40mA 50 1500VDC
NRND EC2A21HMS 21.6~26.4V 5V 0.3A 20mA 50 1500VDC
NRND EC2A22HMS 21.6~26.4V 12V 0.125A 20mA 50 1500VDC
NRND EC2A23HMS 21.6~26.4V 15V 0.1A 20mA 50 1500VDC
NRND EC2A24HMS 21.6~26.4V ±12V ±0.06A 20mA 50 1500VDC
NRND EC2A25HMS 21.6~26.4V ±15V ±0.05A 20mA 50 1500VDC
NRND EC2A31HMS 25.2~30.8V 5V 0.3A 20mA 50 1500VDC
NRND EC2A32HMS 25.2~30.8V 12V 0.125A 20mA 50 1500VDC
NRND EC2A33HMS 25.2~30.8V 15V 0.1A 20mA 50 1500VDC
NRND EC2A34HMS 25.2~30.8V ±12V ±0.06A 20mA 50 1500VDC
NRND EC2A41HMS 43.2~52.8V 5V 0.3A 15mA 50 1500VDC
NRND EC2A42HMS 43.2~52.8V 12V 0.125A 15mA 50 1500VDC
NRND EC2A43HMS 43.2~52.8V 15V 0.1A 15mA 50 1500VDC
NRND EC2A44HMS 43.2~52.8V ±12V ±0.06A 15mA 50 1500VDC
NRND EC2A45HMS 43.2~52.8V ±15V ±0.05A 15mA 50 1500VDC
