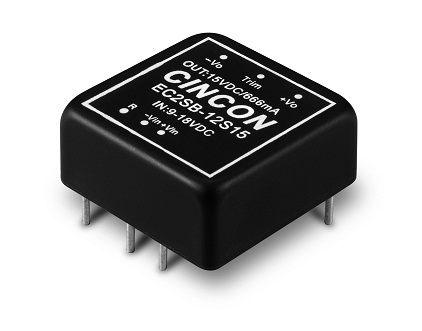

EC2SB

10Watts 1"x1" Isolated DC-DC Converter

EC2SB

10W Isolated Output

Efficiency to 87%

2:1 Input Range

Regulated Outputs

Fixed Switching Frequency

Input Under Voltage Protection

Over Current Protection

Remote On/Off

Continuous Short Circuit Protection

Conductive EMI Meets EN55032 Class A

Without Tantalum Capacitors Inside

Safety Meets IEC/EN/UL 62368-1

Download File
Model List
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
EC2SB-24S33 18~36V 3.3V 2.5A 25mA 82 1500VDC
EC2SB-24S05 18~36V 5V 2A 25mA 85 1500VDC
EC2SB-24S12 18~36V 12V 0.833A 25mA 87 1500VDC
EC2SB-24S15 18~36V 15V 0.666A 25mA 87 1500VDC
EC2SB-24D05 18~36V ±5V ±1A 25mA 85 1500VDC
EC2SB-24D12 18~36V ±12V ±0.416A 25mA 87 1500VDC
EC2SB-24D15 18~36V ±15V ±0.333A 25mA 87 1500VDC
EC2SB-24S33S 18~36V 3.3V 2.5A 25mA 82 1500VDC
EC2SB-24S05S 18~36V 5V 2A 25mA 85 1500VDC
EC2SB-24S12S 18~36V 12V 0.833A 25mA 87 1500VDC
EC2SB-24S15S 18~36V 15V 0.666A 25mA 87 1500VDC
EC2SB-24D05S 18~36V ±5V ±1A 25mA 85 1500VDC
EC2SB-24D12S 18~36V ±12V ±0.416A 25mA 87 1500VDC
EC2SB-24D15S 18~36V ±15V ±0.333A 25mA 87 1500VDC
EC2SB-48S33 36~75V 3.3V 2.5A 20mA 81 1500VDC
EC2SB-48S05 36~75V 5V 2A 20mA 85 1500VDC
EC2SB-48S12 36~75V 12V 0.833A 20mA 87 1500VDC
EC2SB-48S15 36~75V 15V 0.666A 20mA 87 1500VDC
EC2SB-48D05 36~75V ±5V ±1A 20mA 85 1500VDC
EC2SB-48D12 36~75V ±12V ±0.416A 20mA 87 1500VDC
EC2SB-48D15 36~75V ±15V ±0.333A 20mA 87 1500VDC
EC2SB-48S33S 36~75V 3.3V 2.5A 20mA 81 1500VDC
EC2SB-48S05S 36~75V 5V 2A 20mA 85 1500VDC
EC2SB-48S12S 36~75V 12V 0.833A 20mA 87 1500VDC
EC2SB-48S15S 36~75V 15V 0.666A 20mA 87 1500VDC
EC2SB-48D05S 36~75V ±5V ±1A 20mA 85 1500VDC
EC2SB-48D12S 36~75V ±12V ±0.416A 20mA 87 1500VDC
EC2SB-48D15S 36~75V ±15V ±0.333A 20mA 87 1500VDC
EC2SB-05S33 4.7~9V 3.3V 2.5A 120mA 87 1500VDC
EC2SB-05S05 4.7~9V 5V 2A 120mA 87 1500VDC
EC2SB-05S12 4.7~9V 12V 0.833A 50mA 87 1500VDC
EC2SB-05S15 4.7~9V 15V 0.666A 50mA 87 1500VDC
EC2SB-05D05 4.7~9V ±5V ±1A 50mA 85 1500VDC
EC2SB-05D12 4.7~9V ±12V ±0.416A 50mA 87 1500VDC
EC2SB-05D15 4.7~9V ±15V ±0.333A 50mA 87 1500VDC
EC2SB-05S33S 4.7~9V 3.3V 2.5A 120mA 87 1500VDC
EC2SB-05S05S 4.7~9V 5V 2A 120mA 87 1500VDC
EC2SB-05S12S 4.7~9V 12V 0.833A 50mA 87 1500VDC
EC2SB-05S15S 4.7~9V 15V 0.666A 50mA 87 1500VDC
EC2SB-05D05S 4.7~9V ±5V ±1A 50mA 85 1500VDC
EC2SB-05D12S 4.7~9V ±12V ±0.416A 50mA 87 1500VDC
EC2SB-05D15S 4.7~9V ±15V ±0.333A 50mA 87 1500VDC
EC2SB-12S33 9~18V 3.3V 2.5A 30mA 82 1500VDC
EC2SB-12S05 9~18V 5V 2A 30mA 85 1500VDC
EC2SB-12S12 9~18V 12V 0.833A 35mA 87 1500VDC
EC2SB-12S15 9~18V 15V 0.666A 35mA 87 1500VDC
EC2SB-12D05 9~18V ±5V ±1A 45mA 85 1500VDC
EC2SB-12D12 9~18V ±12V ±0.416A 45mA 87 1500VDC
EC2SB-12D15 9~18V ±15V ±0.333A 45mA 87 1500VDC
EC2SB-12S33S 9~18V 3.3V 2.5A 30mA 82 1500VDC
EC2SB-12S05S 9~18V 5V 2A 30mA 85 1500VDC
EC2SB-12S12S 9~18V 12V 0.833A 35mA 87 1500VDC
EC2SB-12S15S 9~18V 15V 0.666A 35mA 87 1500VDC
EC2SB-12D05S 9~18V ±5V ±1A 45mA 85 1500VDC
EC2SB-12D12S 9~18V ±12V ±0.416A 45mA 87 1500VDC
EC2SB-12D15S 9~18V ±15V ±0.333A 45mA 87 1500VDC
