7.5Watts 2"x1" Isolated DC-DC Converter

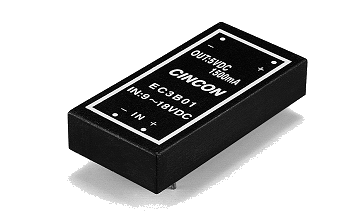

EC3B 7.5Watts 2"x1" Isolated DC-DC Converter

*EOL Effective Date: Aug/31/2022*

7.5W Isolated Output

Efficiency to 82%

2” x 1” Case

Regulated Outputs

Pi Input Filter

Continuous Short Circuit Protection

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
  EC3B01 9~18V 5V 1.5A 7.5mA 76 1500VDC
  EC3B02 9~18V 12V 0.625A 7.5mA 80 1500VDC
  EC3B03 9~18V 15V 0.5A 7.5mA 80 1500VDC
  EC3B04 9~18V ±12V ±0.31A 12mA 80 1500VDC
  EC3B05 9~18V ±15V ±0.25A 12mA 80 1500VDC
  EC3B06 9~18V ±5V ±0.75A 7.5mA 76 1500VDC
  EC3B07 9~18V 3.3V 1.5A 7.5mA 74 1500VDC
  EC3B11 18~36V 5V 1.5A 5mA 78 1500VDC
  EC3B12 18~36V 12V 0.625A 5mA 82 1500VDC
  EC3B13 18~36V 15V 0.5A 5mA 82 1500VDC
  EC3B14 18~36V ±12V ±0.31A 7.5mA 81 1500VDC
  EC3B15 18~36V ±15V ±0.25A 7.5mA 81 1500VDC
  EC3B16 18~36V ±5V ±0.75A 7.5mA 78 1500VDC
  EC3B17 18~36V 3.3V 1.5A 5mA 76 1500VDC
  EC3B21 36~72V 5V 1.5A 2mA 78 1500VDC
  EC3B22 36~72V 12V 0.625A 2mA 81 1500VDC
  EC3B23 36~72V 15V 0.5A 2mA 81 1500VDC
  EC3B24 36~72V ±12V ±0.31A 3mA 81 1500VDC
  EC3B25 36~72V ±15V ±0.25A 3mA 81 1500VDC
  EC3B26 36~72V ±5V ±0.75A 3mA 78 1500VDC
  EC3B27 36~72V 3.3V 1.5A 3mA 76 1500VDC
