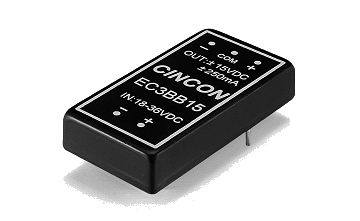

7.5Watts 2"x1" Isolated DC-DC Converter

EC3BB 7.5Watts 2"x1" Isolated DC-DC Converter

7.5W Isolated Output

Remote On/Off (Option)

Efficiency to 82%

2” x 1” Case

Regulated Outputs

Continuous Short Circuit Protection

Meets EN55022 Class B, Conducted

Pi Input Filter

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
NRND EC3BB01 9~18V 5V 1.5A 7.5mA 76 1500VDC
NRND EC3BB02 9~18V 12V 0.625A 7.5mA 80 1500VDC
NRND EC3BB03 9~18V 15V 0.5A 7.5mA 80 1500VDC
NRND EC3BB04 9~18V ±12V ±0.31A 12mA 80 1500VDC
NRND EC3BB05 9~18V ±15V ±0.25A 12mA 80 1500VDC
NRND EC3BB06 9~18V ±5V ±0.75A 7.5mA 76 1500VDC
NRND EC3BB07 9~18V 3.3V 1.5A 7.5mA 74 1500VDC
NRND EC3BB11 18~36V 5V 1.5A 5mA 78 1500VDC
NRND EC3BB12 18~36V 12V 0.625A 5mA 82 1500VDC
NRND EC3BB13 18~36V 15V 0.5A 5mA 82 1500VDC
NRND EC3BB14 18~36V ±12V ±0.31A 7.5mA 81 1500VDC
NRND EC3BB15 18~36V ±15V ±0.25A 7.5mA 81 1500VDC
NRND EC3BB16 18~36V ±5V ±0.75A 7.5mA 78 1500VDC
NRND EC3BB17 18~36V 3.3V 1.5A 5mA 76 1500VDC
NRND EC3BB21 36~72V 5V 1.5A 2mA 78 1500VDC
NRND EC3BB22 36~72V 12V 0.625A 2mA 81 1500VDC
NRND EC3BB23 36~72V 15V 0.5A 2mA 81 1500VDC
NRND EC3BB24 36~72V ±12V ±0.31A 3mA 81 1500VDC
NRND EC3BB25 36~72V ±15V ±0.25A 3mA 81 1500VDC
NRND EC3BB26 36~72V ±5V ±0.75A 3mA 78 1500VDC
NRND EC3BB27 36~72V 3.3V 1.5A 3mA 76 1500VDC
NRND EC3BB01T 9~18V 5V 1.5A 7.5mA 76 1500VDC
NRND EC3BB02T 9~18V 12V 0.625A 7.5mA 80 1500VDC
NRND EC3BB03T 9~18V 15V 0.5A 7.5mA 80 1500VDC
NRND EC3BB04T 9~18V ±12V ±0.31A 12mA 80 1500VDC
NRND EC3BB05T 9~18V ±15V ±0.25A 12mA 80 1500VDC
NRND EC3BB06T 9~18V ±5V ±0.75A 7.5mA 76 1500VDC
NRND EC3BB07T 9~18V 3.3V 1.5A 7.5mA 74 1500VDC
NRND EC3BB11T 18~36V 5V 1.5A 5mA 78 1500VDC
NRND EC3BB12T 18~36V 12V 0.625A 5mA 82 1500VDC
NRND EC3BB13T 18~36V 15V 0.5A 5mA 82 1500VDC
NRND EC3BB14T 18~36V ±12V ±0.31A 7.5mA 81 1500VDC
NRND EC3BB15T 18~36V ±15V ±0.25A 7.5mA 81 1500VDC
NRND EC3BB16T 18~36V ±5V ±0.75A 7.5mA 78 1500VDC
NRND EC3BB17T 18~36V 3.3V 1.5A 5mA 76 1500VDC
NRND EC3BB21T 36~72V 5V 1.5A 2mA 78 1500VDC
NRND EC3BB22T 36~72V 12V 0.625A 2mA 81 1500VDC
NRND EC3BB23T 36~72V 15V 0.5A 2mA 81 1500VDC
NRND EC3BB24T 36~72V ±12V ±0.31A 3mA 81 1500VDC
NRND EC3BB25T 36~72V ±15V ±0.25A 3mA 81 1500VDC
NRND EC3BB26T 36~72V ±5V ±0.75A 3mA 78 1500VDC
NRND EC3BB27T 36~72V 3.3V 1.5A 3mA 76 1500VDC
