EC3C

15Watts 2"x2" Isolated DC-DC Converter

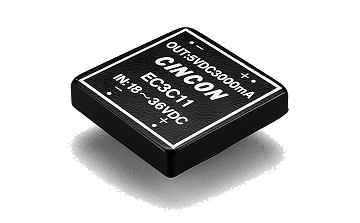

EC3C 15Watts 2"x2" Isolated DC-DC Converter

15W Isolated Output

Efficiency to 82%

2” x 2” Six-Sided Shield Metal Case

Alternative Pin Configuration

Fixed 200KHz Switching Frequency

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
NRND EC3C01 9~18V 5V 3A 30mA 75 500VDC
NRND EC3C02 9~18V 12V 1.25A 30mA 78 500VDC
NRND EC3C03 9~18V 15V 1A 30mA 78 500VDC
NRND EC3C04 9~18V ±12V ±0.625A 35mA 77 500VDC
NRND EC3C05 9~18V ±15V ±0.5A 35mA 77 500VDC
NRND EC3C06 9~18V ±5V ±1.5A 35mA 77 500VDC
NRND EC3C07 9~18V 3.3V 3A 30mA 70 500VDC
NRND EC3C11 18~36V 5V 3A 15mA 78 500VDC
NRND EC3C12 18~36V 12V 1.25A 20mA 81 500VDC
NRND EC3C13 18~36V 15V 1A 20mA 81 500VDC
NRND EC3C14 18~36V ±12V ±0.625A 25mA 80 500VDC
NRND EC3C15 18~36V ±15V ±0.5A 25mA 80 500VDC
NRND EC3C16 18~36V ±5V ±1.5A 25mA 80 500VDC
NRND EC3C17 18~36V 3.3V 3A 15mA 74 500VDC
NRND EC3C21 36~72V 5V 3A 10mA 80 500VDC
NRND EC3C22 36~72V 12V 1.25A 15mA 82 500VDC
NRND EC3C23 36~72V 15V 1A 15mA 82 500VDC
NRND EC3C24 36~72V ±12V ±0.625A 20mA 81 500VDC
NRND EC3C25 36~72V ±15V ±0.5A 20mA 81 500VDC
NRND EC3C26 36~72V ±5V ±1.5A 20mA 81 500VDC
NRND EC3C27 36~72V 3.3V 3A 20mA 76 500VDC
NRND EC3C01S 9~18V 5V 3A 30mA 75 500VDC
NRND EC3C02S 9~18V 12V 1.25A 30mA 78 500VDC
NRND EC3C03S 9~18V 15V 1A 30mA 78 500VDC
NRND EC3C04S 9~18V ±12V ±0.625A 35mA 77 500VDC
NRND EC3C05S 9~18V ±15V ±0.5A 35mA 77 500VDC
NRND EC3C06S 9~18V ±5V ±1.5A 35mA 77 500VDC
NRND EC3C07S 9~18V 3.3V 3A 30mA 70 500VDC
NRND EC3C11S 18~36V 5V 3A 15mA 78 500VDC
NRND EC3C12S 18~36V 12V 1.25A 20mA 81 500VDC
NRND EC3C13S 18~36V 15V 1A 20mA 81 500VDC
NRND EC3C14S 18~36V ±12V ±0.625A 25mA 80 500VDC
NRND EC3C15S 18~36V ±15V ±0.5A 25mA 80 500VDC
NRND EC3C16S 18~36V ±5V ±1.5A 25mA 80 500VDC
NRND EC3C17S 18~36V 3.3V 3A 15mA 74 500VDC
NRND EC3C21S 36~72V 5V 3A 10mA 80 500VDC
NRND EC3C22S 36~72V 12V 1.25A 15mA 82 500VDC
NRND EC3C23S 36~72V 15V 1A 15mA 82 500VDC
NRND EC3C24S 36~72V ±12V ±0.625A 20mA 81 500VDC
NRND EC3C25S 36~72V ±15V ±0.5A 20mA 81 500VDC
NRND EC3C26S 36~72V ±5V ±1.5A 20mA 81 500VDC
NRND EC3C27S 36~72V 3.3V 3A 20mA 76 500VDC
