EC3SB

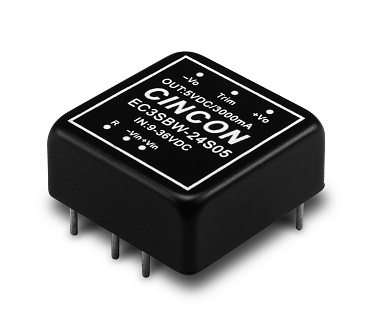

15Watts 1"x1" Isolated DC-DC Converter

EC3SB

15W Isolated Output

Efficiency to 90%

Remote On/Off

Input Under Voltage Protection

Short Circuit Protection

Over Current Protection

No Tantalum Capacitor Inside

Download File
Model List
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
EC3SB-24S33 18~36V 3.3V 4A 50mA 86 1500VDC
EC3SB-24S05 18~36V 5V 3A 50mA 89 1500VDC
EC3SB-24S12 18~36V 12V 1.25A 20mA 90 1500VDC
EC3SB-24S15 18~36V 15V 1A 20mA 90 1500VDC
EC3SB-24D05 18~36V ±5V ±1.5A 25mA 86 1500VDC
EC3SB-24D12 18~36V ±12V ±0.625A 25mA 88 1500VDC
EC3SB-24D15 18~36V ±15V ±0.5A 25mA 89 1500VDC
EC3SB-24S33S 18~36V 3.3V 4A 50mA 86 1500VDC
EC3SB-24S05S 18~36V 5V 3A 50mA 89 1500VDC
EC3SB-24S12S 18~36V 12V 1.25A 20mA 90 1500VDC
EC3SB-24S15S 18~36V 15V 1A 20mA 90 1500VDC
EC3SB-24D05S 18~36V ±5V ±1.5A 25mA 86 1500VDC
EC3SB-24D12S 18~36V ±12V ±0.625A 25mA 88 1500VDC
EC3SB-24D15S 18~36V ±15V ±0.5A 25mA 89 1500VDC
EC3SB-48S33 36~75V 3.3V 4A 25mA 86 1500VDC
EC3SB-48S05 36~75V 5V 3A 30mA 88 1500VDC
EC3SB-48S12 36~75V 12V 1.25A 20mA 90 1500VDC
EC3SB-48S15 36~75V 15V 1A 20mA 90 1500VDC
EC3SB-48D05 36~75V ±5V ±1.5A 20mA 86 1500VDC
EC3SB-48D12 36~75V ±12V ±0.625A 20mA 88 1500VDC
EC3SB-48D15 36~75V ±15V ±0.5A 20mA 89 1500VDC
EC3SB-48S33S 36~75V 3.3V 4A 25mA 86 1500VDC
EC3SB-48S05S 36~75V 5V 3A 30mA 88 1500VDC
EC3SB-48S12S 36~75V 12V 1.25A 20mA 90 1500VDC
EC3SB-48S15S 36~75V 15V 1A 20mA 90 1500VDC
EC3SB-48D05S 36~75V ±5V ±1.5A 20mA 86 1500VDC
EC3SB-48D12S 36~75V ±12V ±0.625A 20mA 88 1500VDC
EC3SB-48D15S 36~75V ±15V ±0.5A 20mA 89 1500VDC
EC3SB-12S33 9~18V 3.3V 4A 90mA 85 1500VDC
EC3SB-12S05 9~18V 5V 3A 85mA 88 1500VDC
EC3SB-12S12 9~18V 12V 1.25A 70mA 88 1500VDC
EC3SB-12S15 9~18V 15V 1A 70mA 88 1500VDC
EC3SB-12D05 9~18V ±5V ±1.5A 45mA 85 1500VDC
EC3SB-12D12 9~18V ±12V ±0.625A 45mA 87 1500VDC
EC3SB-12D15 9~18V ±15V ±0.5A 45mA 88 1500VDC
EC3SB-12S33S 9~18V 3.3V 4A 90mA 85 1500VDC
EC3SB-12S05S 9~18V 5V 3A 85mA 88 1500VDC
EC3SB-12S12S 9~18V 12V 1.25A 70mA 88 1500VDC
EC3SB-12S15S 9~18V 15V 1A 70mA 88 1500VDC
EC3SB-12D05S 9~18V ±5V ±1.5A 45mA 85 1500VDC
EC3SB-12D12S 9~18V ±12V ±0.625A 45mA 87 1500VDC
EC3SB-12D15S 9~18V ±15V ±0.5A 45mA 88 1500VDC
