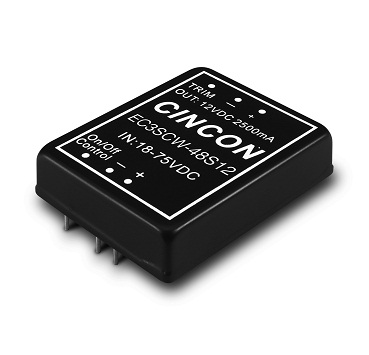

EC3SCW

30Watts 4:1 Input Range 2"x1.6" Isolated DC-DC Converter

EC3SCW

20-30W Isolated Output

Regulated Outputs

Six Sided Shielding Metal Case

Efficiency to 91%

Short Circuit/Over Current Protection

Input Under Voltage Protection

Download File
Model List
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
EC3SCW-48S3V3 18~75V 3.3V 7.5A 30mA 88 1500VDC
EC3SCW-48S05 18~75V 5V 6A 30mA 90 1500VDC
EC3SCW-48S12 18~75V 12V 2.5A 40mA 91 1500VDC
EC3SCW-48S15 18~75V 15V 2A 50mA 91 1500VDC
EC3SCW-48S3V3N 18~75V 3.3V 7.5A 30mA 88 1500VDC
EC3SCW-48S05N 18~75V 5V 6A 30mA 90 1500VDC
EC3SCW-48S12N 18~75V 12V 2.5A 40mA 91 1500VDC
EC3SCW-48S15N 18~75V 15V 2A 50mA 91 1500VDC
EC3SCW-24S3V3 9~36V 3.3V 7.5A 50mA 88 1500VDC
EC3SCW-24S05 9~36V 5V 6A 60mA 89 1500VDC
EC3SCW-24S12 9~36V 12V 2.5A 80mA 91 1500VDC
EC3SCW-24S15 9~36V 15V 2A 50mA 91 1500VDC
EC3SCW-24S3V3N 9~36V 3.3V 7.5A 50mA 88 1500VDC
EC3SCW-24S05N 9~36V 5V 6A 60mA 89 1500VDC
EC3SCW-24S12N 9~36V 12V 2.5A 80mA 91 1500VDC
EC3SCW-24S15N 9~36V 15V 2A 50mA 91 1500VDC
