10Watts 4:1 Input Range 2"x1" Isolated DC-DC Converter

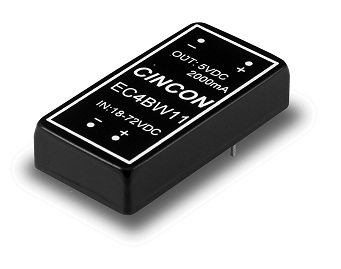

EC4BW 10Watts 4:1 Input Range 2"x1" Isolated DC-DC Converter

10W Isolated Output

4:1 Input Range

Meets EN55022 Class A

Pi Input Filter

Continuous Short Circuit Protection

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
  EC4BW11 18~72V 5V 2A 10mA 80 500VDC
  EC4BW12 18~72V 12V 0.83A 10mA 81 500VDC
  EC4BW13 18~72V 15V 0.666A 10mA 81 500VDC
  EC4BW14 18~72V ±12V ±0.415A 15mA 81 500VDC
  EC4BW15 18~72V ±15V ±0.333A 15mA 82 500VDC
  EC4BW16 18~72V ±5V ±1A 15mA 82 500VDC
  EC4BW17 18~72V 3.3V 2A 10mA 76 500VDC
  EC4BW01 9~36V 5V 2A 15mA 78 500VDC
  EC4BW02 9~36V 12V 0.83A 15mA 80 500VDC
  EC4BW03 9~36V 15V 0.666A 15mA 80 500VDC
  EC4BW04 9~36V ±12V ±0.415A 20mA 80 500VDC
  EC4BW05 9~36V ±15V ±0.333A 20mA 80 500VDC
  EC4BW06 9~36V ±5V ±1A 20mA 80 500VDC
  EC4BW07 9~36V 3.3V 2A 15mA 76 500VDC
