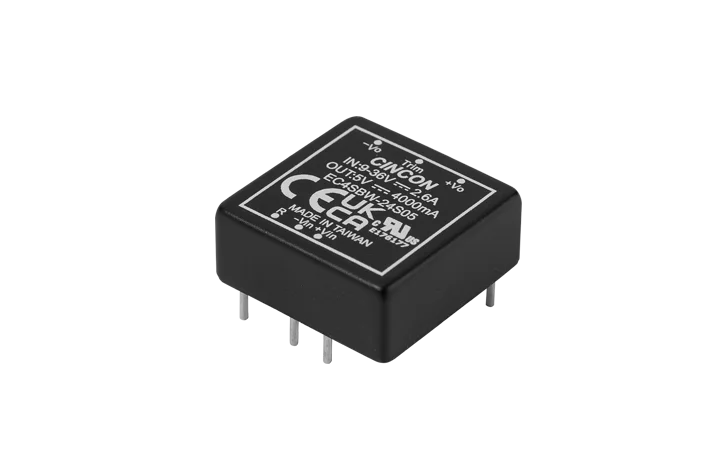

EC4SBW
20Watts 4:1 Input Range 1"x1" Isolated DC-DC Converter
20W Isolated Output
1”x1”x0.4” Shielded Metal Case
Very High Efficiency Up to 90.5%
Low No Load Power Consumption
4:1 Input Range
Regulated Outputs
Fixed Switching Frequency
Input Under Voltage Protection
Over Current Protection
Remote On/Off
Continuous Short Circuit Protection
Without Tantalum Capacitors Inside
Safety Meets IEC/EN/UL 62368-1
Datasheet| Part Number | Input Voltage | Output Voltage | Output Current | No load Input Current | Efficiency (%) | I/O Isolation Voltage | Package | Datasheet | Find stock | RFQ | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC4SBW-24S33 | 9~36V | 3.3V | 4.5A | 10mA | 88.5 | 1500VDC | 1”x1” (SB) |

|
  Stock |
  RFQ |
|
|
EC4SBW-24S05N | 9~36V | 5V | 4A | 10mA | 90.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24S12N | 9~36V | 12V | 1.67A | 10mA | 89 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24S15N | 9~36V | 15V | 1.33A | 10mA | 89 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24D12N | 9~36V | ±12V | ±0.83A | 10mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24D15N | 9~36V | ±15V | ±0.66A | 8mA | 89 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48S33N | 18~75V | 3.3V | 4.5A | 8mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48S05N | 18~75V | 5V | 4A | 8mA | 90.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48S12N | 18~75V | 12V | 1.67A | 8mA | 89.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48S15N | 18~75V | 15V | 1.33A | 8mA | 89 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48D12N | 18~75V | ±12V | ±0.83A | 8mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24S33N | 9~36V | 3.3V | 4.5A | 10mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48D15 | 18~75V | ±15V | ±0.66A | 8mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24S05 | 9~36V | 5V | 4A | 10mA | 90.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24S12 | 9~36V | 12V | 1.67A | 10mA | 89 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24S15 | 9~36V | 15V | 1.33A | 10mA | 89 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24D12 | 9~36V | ±12V | ±0.83A | 10mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-24D15 | 9~36V | ±15V | ±0.66A | 8mA | 89 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48S33 | 18~75V | 3.3V | 4.5A | 8mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48S05 | 18~75V | 5V | 4A | 8mA | 90.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48S12 | 18~75V | 12V | 1.67A | 8mA | 89.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48S15 | 18~75V | 15V | 1.33A | 8mA | 89 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48D12 | 18~75V | ±12V | ±0.83A | 8mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
|
|
EC4SBW-48D15N | 18~75V | ±15V | ±0.66A | 8mA | 88.5 | 1500VDC | 1”x1” (SB) |
|
Stock |
RFQ |
