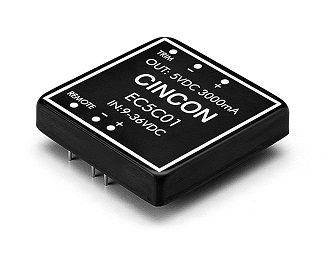

15Watts 4:1 Input Range 2"x2" Isolated DC-DC Converter

EC5C 15Watts 4:1 Input Range 2"x2" Isolated DC-DC Converter

15W Isolated Output

2” X 2” Six-Sided Shield Metal Case

4:1 Input Range

Efficiency to 84%

Remote On/Off Control

Regulated Outputs

Continuous Short Circuit Protection

UL60950-1 Approval

Safety Meets IEC/EN/UL 62368-1

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
  EC5C11 18~72V 5V 3A 10mA 81 500VDC
  EC5C12 18~72V 12V 1.25A 10mA 83 500VDC
  EC5C13 18~72V 15V 1A 10mA 82 500VDC
  EC5C14 18~72V ±5V ±1.5A 15mA 81 500VDC
  EC5C15 18~72V ±12V ±0.625A 15mA 83 500VDC
  EC5C16 18~72V ±15V ±0.5A 15mA 81 500VDC
  EC5C17 18~72V 5/±12V 1.5/±0.31A 15mA 81 500VDC
  EC5C18 18~72V 5/±15V 1.5/±0.25A 15mA 80 500VDC
  EC5C19 18~72V 3.3V 3A 10mA 77 500VDC
  EC5C01 9~36V 5V 3A 15mA 81 500VDC
  EC5C02 9~36V 12V 1.25A 15mA 84 500VDC
  EC5C03 9~36V 15V 1A 15mA 82 500VDC
  EC5C04 9~36V ±5V ±1.5A 20mA 81 500VDC
  EC5C05 9~36V ±12V ±0.625A 20mA 82 500VDC
  EC5C06 9~36V ±15V ±0.5A 20mA 83 500VDC
  EC5C07 9~36V 5/±12V 1.5/±0.31A 20mA 80 500VDC
  EC5C08 9~36V 5/±15V 1.5/±0.25A 20mA 80 500VDC
  EC5C09 9~36V 3.3V 3A 15mA 78 500VDC
