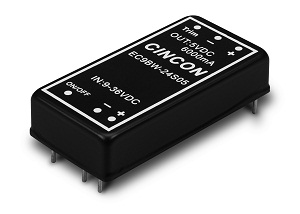

30Watts 4:1 Input Range 2"x1" Isolated DC-DC Converter

30W Isolated Output

Efficiency to 92%

2’’x1’’ Six-Sided Shield Metal Case

4:1 Input Range

Regulated Outputs

Fixed Switching Frequency

Input Under Voltage Protection

Over Current Protection

Remote On/Off

Continuous Short Circuit Protection

No Tantalum Capacitor Inside

Safety Meets IEC/EN/UL 62368-1

Download File

Part Number	Input Voltage	Output Voltage	Output Current	No load Input Current	Efficiency (%)	I/O Isolation Voltage	Package	Find stock	RFQ
EC9BW-48S33	18~75V	3.3V	7.5A	50mA	87.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48S05	18~75V	5V	6A	50mA	90	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48S12	18~75V	12V	2.5A	30mA	90	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48S15	18~75V	15V	2A	30mA	91	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48D12	18~75V	±12V	±1.25A	40mA	90.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48D15	18~75V	±15V	±1A	40mA	91	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48S33N	18~75V	3.3V	7.5A	50mA	87.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48S05N	18~75V	5V	6A	50mA	90	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48S12N	18~75V	12V	2.5A	30mA	90	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48S15N	18~75V	15V	2A	30mA	91	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48D12N	18~75V	±12V	±1.25A	40mA	90.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-48D15N	18~75V	±15V	±1A	40mA	91	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24S33	9~36V	3.3V	7.5A	100mA	88.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24S05	9~36V	5V	6A	110mA	89.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24S12	9~36V	12V	2.5A	50mA	90.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24S15	9~36V	15V	2A	50mA	90.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24D12	9~36V	±12V	±1.25A	60mA	90.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24D15	9~36V	±15V	±1A	60mA	91	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24S33N	9~36V	3.3V	7.5A	100mA	88.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24S05N	9~36V	5V	6A	110mA	89.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24S12N	9~36V	12V	2.5A	50mA	90.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24S15N	9~36V	15V	2A	50mA	90.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24D12N	9~36V	±12V	±1.25A	60mA	90.5	1500VDC	2”x1” (B)	Stock	RFQ
EC9BW-24D15N	9~36V	±15V	±1A	60mA	91	1500VDC	2”x1” (B)	Stock	RFQ
