ECLB75W

DIP / SMD 3-75W

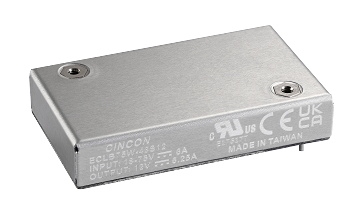

75Watts 4:1 Input Range 2"x1.2" Isolated DC-DC Converter

Efficiency Up to 92.5%

Fixed Switching Frequency

Regulated Outputs

Remote On/Off

Low No Load Power Consumption

Fully Protected (OTP/OCP/OVP/UVLO)

2250Vdc I/O Isolation

No Tantalum Capacitor Inside

2.05’’x1.2”x0.4’’ Six-Sided Shield Metal Case Standard 2”X1” Pin Out Compatible

UL62368-1 Approval

CB Test Certificate IEC62368-1

5000m Operating Altitude

Full Load Operation up to 54℃ with Heat Sink LBT127 (M-C655) Natural Convection

Download File

	Part Number	Input Voltage	Output Voltage	Output Current	No load Input Current	Efficiency (%)	I/O Isolation Voltage
NEW	ECLB75W-24S05	9~36V	5V	15A	10mA	91.5	2250VDC
NEW	ECLB75W-24S12	9~36V	12V	6.25A	10mA	91	2250VDC
NEW	ECLB75W-24S15	9~36V	15V	5A	10mA	90.5	2250VDC
NEW	ECLB75W-24D12	9~36V	±12V	±3.12A	12mA	90.5	2250VDC
NEW	ECLB75W-24D15	9~36V	±15V	±2.5A	12mA	90.5	2250VDC
NEW	ECLB75W-24D24	9~36V	±24V	±1.56A	18mA	90.5	2250VDC
NEW	ECLB75W-48S05	18~75V	5V	15A	8mA	91.5	2250VDC
NEW	ECLB75W-48S12	18~75V	12V	6.25A	8mA	91.5	2250VDC
NEW	ECLB75W-48S15	18~75V	15V	5A	8mA	91	2250VDC
NEW	ECLB75W-48D12	18~75V	±12V	±3.12A	8mA	90.5	2250VDC
NEW	ECLB75W-48D15	18~75V	±15V	±2.5A	8mA	91	2250VDC
NEW	ECLB75W-48D24	18~75V	±24V	±1.56A	8mA	91	2250VDC
NEW	ECLB75W-24S05N	9~36V	5V	15A	10mA	91.5	2250VDC
NEW	ECLB75W-24S12N	9~36V	12V	6.25A	10mA	91	2250VDC
NEW	ECLB75W-24S15N	9~36V	15V	5A	10mA	90.5	2250VDC
NEW	ECLB75W-24D12N	9~36V	±12V	±3.12A	12mA	90.5	2250VDC
NEW	ECLB75W-24D15N	9~36V	±15V	±2.5A	12mA	90.5	2250VDC
NEW	ECLB75W-24D24N	9~36V	±24V	±1.56A	18mA	90.5	2250VDC
NEW	ECLB75W-48S05N	18~75V	5V	15A	8mA	91.5	2250VDC
NEW	ECLB75W-48S12N	18~75V	12V	6.25A	8mA	91.5	2250VDC
NEW	ECLB75W-48S15N	18~75V	15V	5A	8mA	91	2250VDC
NEW	ECLB75W-48D12N	18~75V	±12V	±3.12A	8mA	90.5	2250VDC
NEW	ECLB75W-48D15N	18~75V	±15V	±2.5A	8mA	91	2250VDC
NEW	ECLB75W-48D24N	18~75V	±24V	±1.56A	8mA	91	2250VDC
