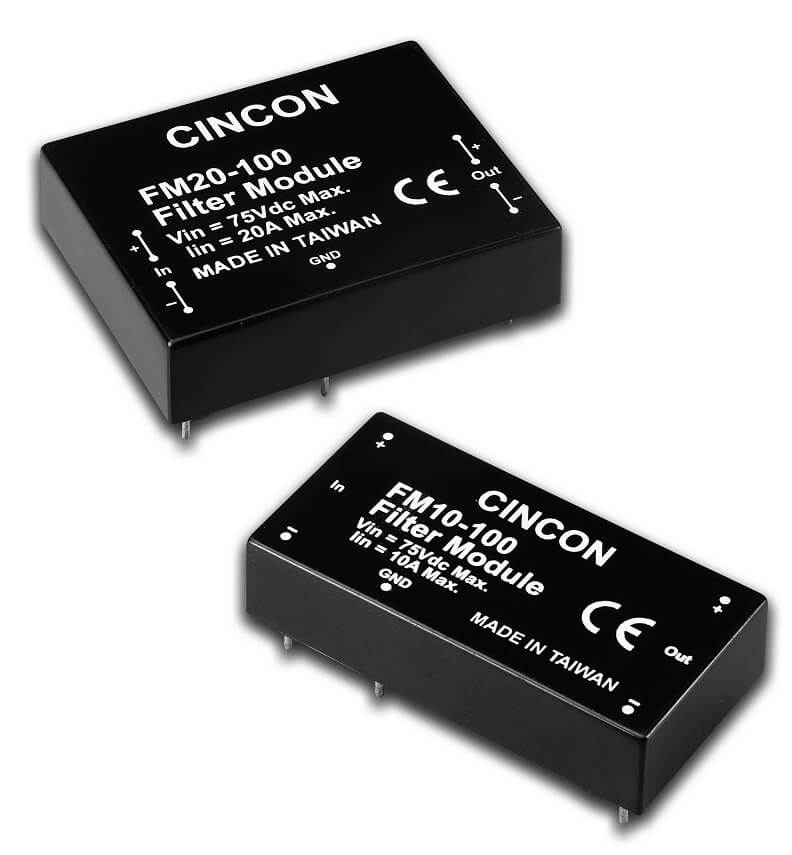

FM10/20

10 & 20 AMP EMI Filter Module

FM10/20

Compact Size 2"x1" & 2" x 1.6"

PCB Mount

75 VDC Input Voltage (Max)

Suitable for Cincon Quarter and Half Bricks

Download File
Model
Number
Input
Voltage
Input Surge
Voltage

Output Current

DC Resistance DC Resistance
+Vin to +Vo -Vin to -Vo

FM10-100

FM20-100

75VDC (Max)

75VDC (Max)
100VDC (Max)

100VDC (Max)
10A (Max)

20A (Max)
11.5 mΩ Typ

9.5 mΩ Typ
4.5 mΩ Typ

5.7 mΩ Typ
