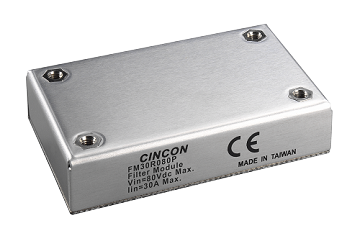

FM30R

30 AMP EMI Filter Module

FM30R

Compact Size 2.28”x1.45”

Quarter-Brick Size

Six-Sided Shield Metal Case

PCB Mount

30A Filter Module

80VDC Input Voltage Maximum

Suitable for EN50121-3-2: 2015

Output Specification

Fire & Smoke Meets EN45545-2

Download File
Part
Number
Input
Voltage
Input Surge
Voltage
Output Rated
Current
DC
Resistance
(+Vin to +Vo)
DC
Resistance
(-Vin to –Vo)
FM30R080P 80 VDC max. 100 VDC max. 30 A max. 3.0 mΩ typ. 3.0 mΩ typ.
