TRE06

6Watts AC-DC Wall-mount Power Adapter Level VI Effciency

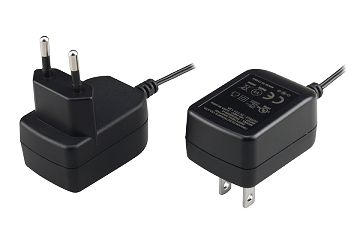

TRE06 6Watts AC-DC Wall-mount Power Adapter Level VI Effciency

Universal Input Range 90~264Vac

High Efficiency up to 81%

Miniature Size

Optional US&EU AC Plugs

Class II

No Load Power Consumption < 75mW

Approved IEC/UL 62368-1

Meets EN55032 Class B and CISPR/FCC Class B

Operating Altitude 4000m

Continuous Short Circuit Protection

Constant Current (Optional)

Meets CoC Tier 2 & DoE Level VI

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
  TRE06S050 6W 90-264 5V 1.2A 76% 4000m -20°C ~ 80°C
  TRE06S090 5.85W 90-264 9V 0.65A 80% 4000m -20°C ~ 80°C
  TRE06S120 6W 90-264 12V 0.5A 80% 4000m -20°C ~ 80°C
  TRE06S150 6W 90-264 15V 0.4A 81% 4000m -20°C ~ 80°C
