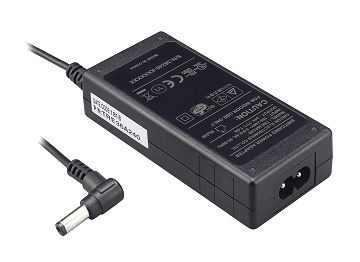

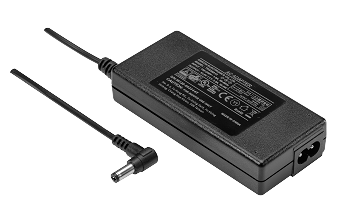

TRG36A

36Watts AC-DC ITE C8 Desktop Power Adapter Level VI Efficiency

TRG36A 36Watts AC-DC ITE C8 Desktop Power Adapter Level VI Efficiency

*EOL Effective Date: Dec/31/2022*

Universal Input Range 90~264Vac

High Efficiency up to 89%

Class II

No Load Input Power Consumption < 75mW

Approval IEC/EN/UL62368-1

Approval EN55032 and CISPR/FCC Class B

Operating Altitude 2000m

Continuous Short Circuit Protection

Over Voltage Protection

Meets CoC Tier 2 and DoE Level VI

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
NRND TRG36A05 20W 90-264 5V 4A 84% 2000m -20°C ~ 60°C
NRND TRG36A09 27W 90-264 9V 3A 87% 2000m -20°C ~ 60°C
NRND TRG36A12 30W 90-264 12V 2.5A 87% 2000m -20°C ~ 60°C
NRND TRG36A13 32.4W 90-264 13.5V 2.4A 87% 2000m -20°C ~ 60°C
NRND TRG36A15 36W 90-264 15V 2.4A 87% 2000m -20°C ~ 60°C
NRND TRG36A18 36W 90-264 18V 2A 88% 2000m -20°C ~ 60°C
NRND TRG36A24 36W 90-264 24V 1.5A 88% 2000m -20°C ~ 60°C
NRND TRG36A48 36W 90-264 48V 0.75A 89% 2000m -20°C ~ 60°C
