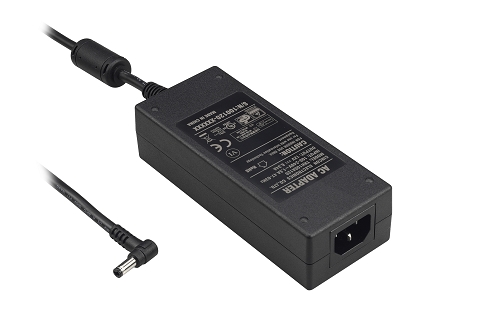

TRH100A

100Watts AC-DC ITE C14 Desktop Power Adapter Level VI Efficiency

TRH100A

Universal Input 90 - 264VAC

CoC Tier 2 & DoE Level VI Compliant

Active PFC Meet EN61000-3-2

EN55022 Class B & CISPR / FCC Class B

Short Circuit Protection

Over Voltage Protection

Download File
Model List
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
TRH100A120 100.08W 90-264 12V 8.34A 89% 5000m -30°C ~ 70°C
TRH100A135 98.955W 90-264 13.5V 7.33A 89% 5000m -30°C ~ 70°C
TRH100A150 100.05W 90-264 15V 6.67A 89% 5000m -30°C ~ 70°C
TRH100A180 100.08W 90-264 18V 5.56A 89% 5000m -30°C ~ 70°C
TRH100A190 98.99W 90-264 19V 5.21A 89% 5000m -30°C ~ 70°C
TRH100A240 100.08W 90-264 24V 4.17A 89% 5000m -30°C ~ 70°C
TRH100A280 99.12W 90-264 28V 3.54A 89% 5000m -30°C ~ 70°C
TRH100A360 100.08W 90-264 36V 2.78A 89% 5000m -30°C ~ 70°C
TRH100A480 99.84W 90-264 48V 2.08A 89% 5000m -30°C ~ 70°C
