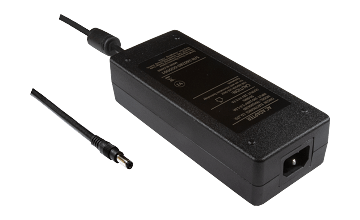

TRH160A

Desk-Top

160Watts AC-DC ITE C14 Desktop Power Adapter Level VI Efficiency

IEC320/C14 Compact Size

Universal Input: 90~264Vac

Continuous Short Circuit Protection

Over Voltage Protection

No Load Power Consumption<150mW

Very Low Leakage Current <90uA

Meets IEC/EN 60335-1

Approved IEC/EN/UL62368-1

Meets CoC Tier 2 & DoE Level VI

CE EN55032 Class B & CISPR/FCC Class B

(12V: Output Cable Length ≦ 950mm, DIN Power Plug)

(24V: Output Cable Length ≦ 1220mm, DC Jack)

(28V~56V: Output Cable Length ≦ 1800mm, DC Jack)

Download File

Model List

Part Number	Power (Watts)	Input Voltage	Output Voltage	Output Current	Efficiency (%)	Operating Altitude	Operating Temperature
TRH160A120	150W	90-264	12V	12.5A	91%	5000m	-20°C ~ 70°C
TRH160A240	159.84W	90-264	24V	6.66A	92%	5000m	-20°C ~ 70°C
TRH160A280	159.6W	90-264	28V	5.7A	92%	5000m	-20°C ~ 70°C
TRH160A300	159.3W	90-264	30V	5.31A	92%	5000m	-20°C ~ 70°C
TRH160A360	159.84W	90-264	36V	4.44A	92%	5000m	-20°C ~ 70°C
TRH160A480	159.84W	90-264	48V	3.33A	93%	5000m	-20°C ~ 70°C
TRH160A560	159.6W	90-264	56V	2.85A	93%	5000m	-20°C ~ 70°C
