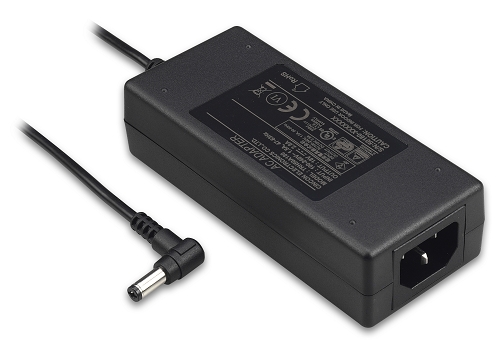

TRH50A

50Watts AC-DC ITE C14 Desktop Power Adapter Level VI Efficiency

TRH50A 50Watts AC-DC ITE C14 Desktop Power Adapter Level VI Efficiency

Universal Input Range 90~264Vac

High Efficiency up to 89%

Class I

No Load Input Power Consumption < 150mW

Approval IEC/EN/UL 62368-1 Ed 3.0

Approval EN55032 and CISPR/FCC Class B

Operating Altitude 5000m

Continuous Short Circuit Protection

Over Voltage Protection

Meets CoC Tier 2 and DOE Level VI

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
  TRH50A120 50.4W 90-264 12V 4.2A 88% 5000m -20°C ~ 70°C
  TRH50A150 50.4W 90-264 15V 3.36A 88% 5000m -20°C ~ 70°C
  TRH50A180 50.4W 90-264 18V 2.8A 88% 5000m -20°C ~ 70°C
  TRH50A190 50.35W 90-264 19V 2.65A 88% 5000m -20°C ~ 70°C
  TRH50A240 50.4W 90-264 24V 2.1A 89% 5000m -20°C ~ 70°C
  TRH50A280 50.4W 90-264 28V 1.8A 89% 5000m -20°C ~ 70°C
  TRH50A360 50.4W 90-264 36V 1.4A 88% 5000m -20°C ~ 70°C
  TRH50A480 50.4W 90-264 48V 1.05A 89% 5000m -20°C ~ 70°C
