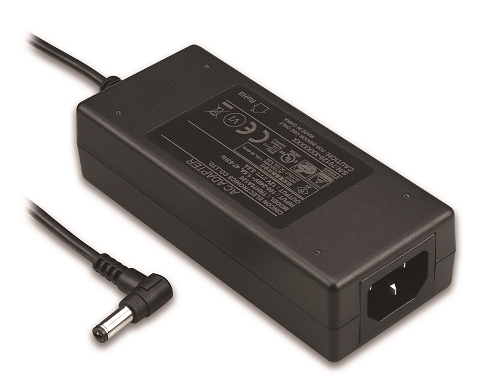

TRH70A

70Watts AC-DC ITE C14 Desktop Power Adapter Level VI Efficiency

TRH70A

Universal Input 90 - 264VAC

CoC Tier 2 & DoE Level VI Compliant

No Load Power Consumption < 150mW

EN55022 Class B & CISPR / FCC Class B

Short Circuit Protection

Over Voltage Protection

Download File
Model List
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
TRH70A120 69.6W 90-264 12V 5.8A 89% 5000m -20°C ~ 70°C
TRH70A150 69.75W 90-264 15V 4.65A 89% 5000m -20°C ~ 70°C
TRH70A180 70.2W 90-264 18V 3.9A 89% 5000m -20°C ~ 70°C
TRH70A190 70.3W 90-264 19V 3.7A 89% 5000m -20°C ~ 70°C
TRH70A280 70W 90-264 28V 2.5A 89% 5000m -20°C ~ 70°C
TRH70A240 72W 90-264 24V 3A 89% 5000m -20°C ~ 70°C
TRH70A360 72W 90-264 36V 2A 89% 5000m -20°C ~ 70°C
TRH70A480 72W 90-264 48V 1.5A 89% 5000m -20°C ~ 70°C
