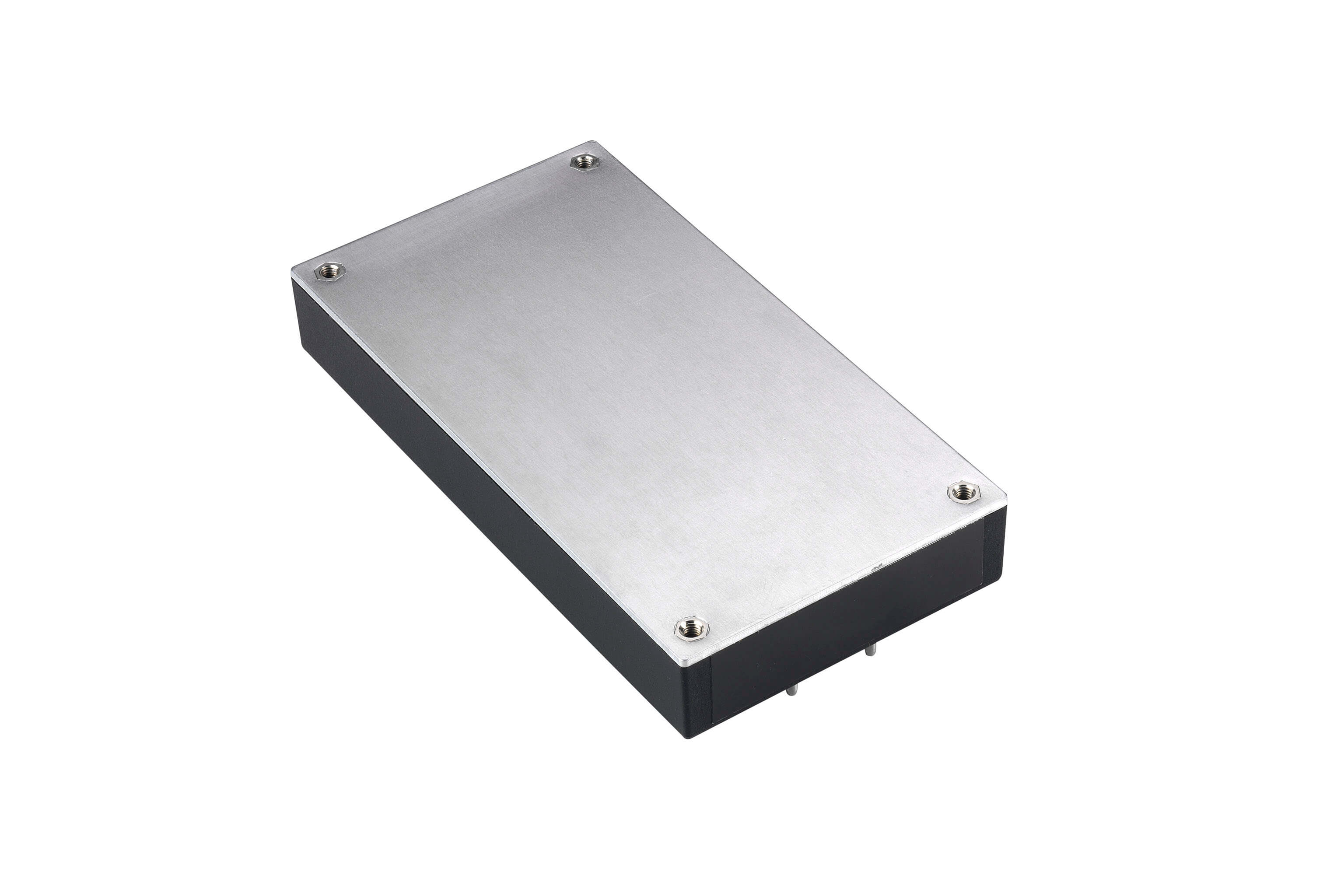

CBM100S

AC-DC Brick

100Watts AC-DC Brick Power Supply

Universal Input Range 90~264Vac

Full Load with Baseplate Cooled and No Fan Required

Wide Operating Temperature Range

17mm Ultra Low Profile Package

Safety Meets EN60950-1

Built-in EN55032 Class B Filter

Active PFC Meets EN61000-3-2

High Efficiency up to 91% Typical

No Load Input Power Consumption <0.5W

Over Temperature Protection

Over Voltage Protection

Over Current Protection

Download File

	Part Number	Power (Watts)	Input Voltage	Output Voltage	Output Current	Efficiency (%)	Operating Altitude	Operating Temperature
NRND	CBM100S120	100.8W	90-264	12V	8.4A	90%	2000m	-20°C ~ 80°C
NRND	CBM100S240	100.8W	90-264	24V	4.2A	91%	2000m	-20°C ~ 80°C
NRND	CBM100S280	100.8W	90-264	28V	3.6A	91%	2000m	-20°C ~ 80°C
NRND	CBM100S360	100.8W	90-264	36V	2.8A	91%	2000m	-20°C ~ 80°C
NRND	CBM100S480	100.8W	90-264	48V	2.1A	90.50%	2000m	-20°C ~ 80°C
