CFM500M

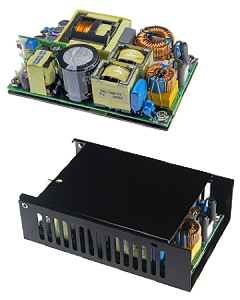

500Watts AC-DC 3’’x5’’ Medical Open Frame Baseplate-cooled Power Supply

CFM500M 500Watts AC-DC 3’’x5’’ Medical Open Frame Baseplate-cooled Power Supply

Universal Input Range 80~264Vac

High Efficiency up to 94.5%

3”x 5” Compact Size

Class I & II

No Load Power Consumption<0.5W

Peak Power Operation up to 600Watt for 5s

Approval IEC/EN/UL 60601-1 2 MOPP

Approval EN 55011, 47 CFR FCC Part 18

Active PFC Meets EN 61000-3-2

Design Meets IEC/EN 60335-1

Operating Altitude 5000m

High Power Density up to 21.64W/Inch3

390W Natural, 470 ~ 500W Conduction Convection

Over Temperature Protection PS On/Off Remote Control

Power Good & Power Fail Signal

+5V Stand-by, 12V Fan Output

Low Inrush Current

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature Package Datasheet Find stock RFQ
  CFM500M120 500.04W 80-264 12V 41.67A 92.5 5000m -40°C ~ 85°C Baseplate Stock RFQ
  CFM500M180 500.04W 80-264 18V 27.78A 93.5 5000m -40°C ~ 85°C Baseplate Stock RFQ
  CFM500M240 499.92W 80-264 24V 20.83A 94.5 5000m -40°C ~ 85°C Baseplate Stock RFQ
  CFM500M360 500.04W 80-264 36V 13.89A 94.5 5000m -40°C ~ 85°C Baseplate Stock RFQ
  CFM500M480 500.16W 80-264 48V 10.42A 94.5 5000m -40°C ~ 85°C Baseplate Stock RFQ
  CFM500M120C 500.04W 80-264 12V 41.67A 92.5 5000m -40°C ~ 85°C Enclosed Stock RFQ
  CFM500M180C 500.04W 80-264 18V 27.78A 93.5 5000m -40°C ~ 85°C Enclosed Stock RFQ
  CFM500M240C 499.92W 80-264 24V 20.83A 94.5 5000m -40°C ~ 85°C Enclosed Stock RFQ
  CFM500M360C 500.04W 80-264 36V 13.89A 94.5 5000m -40°C ~ 85°C Enclosed Stock RFQ
  CFM500M480C 500.16W 80-264 48V 10.42A 94.5 5000m -40°C ~ 85°C Enclosed Stock RFQ
