CFM81S

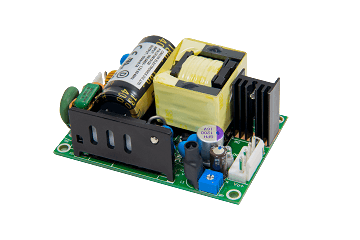

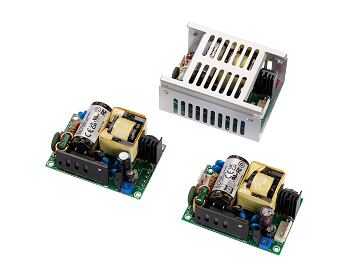

80Watts AC-DC 2"x3" ITE Open Frame Power Supply with Peak Load

Universal Input Range 90~264Vac

High Efficiency up to 91%

2”x 3” Open Frame Compact Size

Class I and Class II

No Load Power <0.3W, CFM81S480 No Load Power <0.35W

Approval IEC/EN/UL 62368-1 Ed 3.0

Approval IEC/EN 60335-1(For Wafer Versions)

Approval EN55032 Class B and CISPR/FCC Class B

Operating Altitude 5000m

Continuous Short Circuit Protection

Peak Load (2 Times of Rated Current)

Download File

	Part Number	Power (Watts)	Input Voltage	Output Voltage	Output Current	Efficiency (%)	Operating Altitude	Operating Temperature
NEW	CFM81S120	80.4W	90-264	12V	6.7A	89	5000m	-30°C ~ 80°C
NEW	CFM81S150	80.4W	90-264	15V	5.36A	89	5000m	-30°C ~ 80°C
NEW	CFM81S240	80.4W	90-264	24V	3.35A	90	5000m	-30°C ~ 80°C
NEW	CFM81S480	80.16W	90-264	48V	1.67A	91	5000m	-30°C ~ 80°C
NEW	CFM81S120-P	80.4W	90-264	12V	6.7A	89	5000m	-30°C ~ 80°C
NEW	CFM81S150-P	80.4W	90-264	15V	5.36A	89	5000m	-30°C ~ 80°C
NEW	CFM81S240-P	80.4W	90-264	24V	3.35A	90	5000m	-30°C ~ 80°C
NEW	CFM81S480-P	80.16W	90-264	48V	1.67A	91	5000m	-30°C ~ 80°C
NEW	CFM81S120-CA	80.4W	90-264	12V	6.7A	89	5000m	-30°C ~ 80°C
NEW	CFM81S150-CA	80.4W	90-264	15V	5.36A	89	5000m	-30°C ~ 80°C
NEW	CFM81S240-CA	80.4W	90-264	24V	3.35A	90	5000m	-30°C ~ 80°C
NEW	CFM81S480-CA	80.16W	90-264	48V	1.67A	91	5000m	-30°C ~ 80°C
