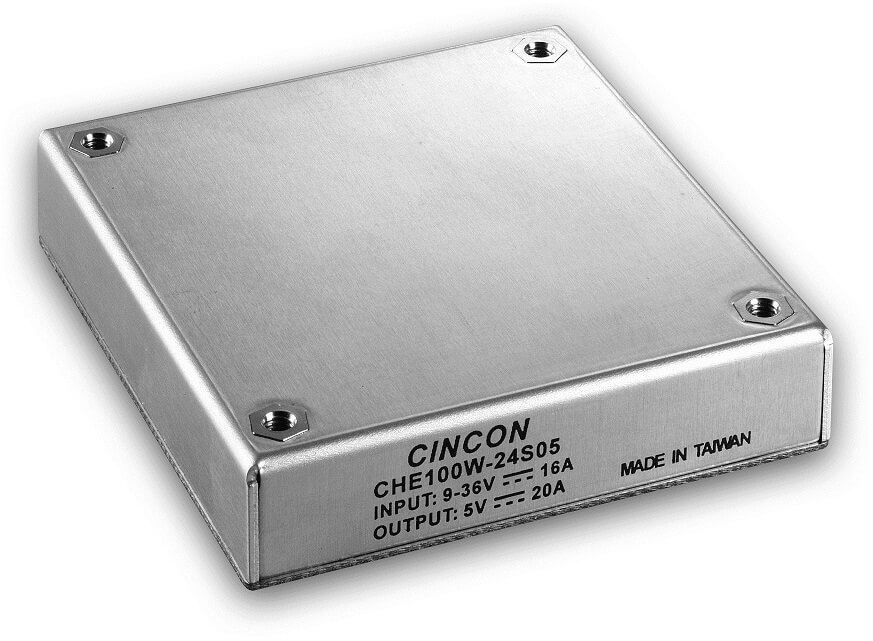

CHE100W

82.5-100Watts 4:1 Input Range Half Brick DC-DC Converter

CHE100W

82.5-100W Isolated Output

Half Brick Size

Six-Sided Shied Metal Case

Regulated Outputs

Efficiency to 93%

Remote On/Off

Input Under Voltage Protection

Over Temperature/Voltage/Current Protection

Continuous Short Circuit Protection

Full Load Operation to 60°C With Heat-Sink

Download File
Model List
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
CHE100W-48S3V3 18~75V 3.3V 25A 130mA 88 1500VDC
CHE100W-48S05 18~75V 5V 20A 130mA 92 1500VDC
CHE100W-48S12 18~75V 12V 8.4A 100mA 93 1500VDC
CHE100W-48S15 18~75V 15V 6.7A 100mA 92.5 1500VDC
CHE100W-48S24 18~75V 24V 4.2A 100mA 91 1500VDC
CHE100W-48S48 18~75V 48V 2.1A 100mA 90.5 1500VDC
CHE100W-48S3V3N 18~75V 3.3V 25A 130mA 88 1500VDC
CHE100W-48S05N 18~75V 5V 20A 130mA 92 1500VDC
CHE100W-48S12N 18~75V 12V 8.4A 100mA 93 1500VDC
CHE100W-48S15N 18~75V 15V 6.7A 100mA 92.5 1500VDC
CHE100W-48S24N 18~75V 24V 4.2A 100mA 91 1500VDC
CHE100W-48S48N 18~75V 48V 2.1A 100mA 90.5 1500VDC
CHE100W-24S3V3 9~36V 3.3V 25A 200mA 87 1500VDC
CHE100W-24S05 9~36V 5V 20A 150mA 89.5 1500VDC
CHE100W-24S12 9~36V 12V 8.4A 200mA 90.5 1500VDC
CHE100W-24S15 9~36V 15V 6.7A 200mA 90.5 1500VDC
CHE100W-24S24 9~36V 24V 4.2A 100mA 89 1500VDC
CHE100W-24S48 9~36V 48V 2.1A 100mA 88.5 1500VDC
CHE100W-24S3V3N 9~36V 3.3V 25A 200mA 87 1500VDC
CHE100W-24S05N 9~36V 5V 20A 150mA 89.5 1500VDC
CHE100W-24S12N 9~36V 12V 8.4A 200mA 90.5 1500VDC
CHE100W-24S15N 9~36V 15V 6.7A 200mA 90.5 1500VDC
CHE100W-24S24N 9~36V 24V 4.2A 100mA 89 1500VDC
CHE100W-24S48N 9~36V 48V 2.1A 100mA 88.5 1500VDC
