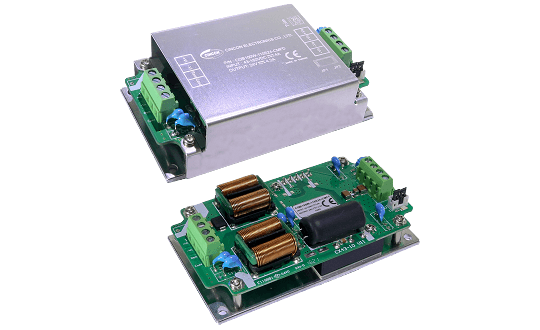

CQB100W-110SXX-CMFC(D)
Chassis Mount / DIN Rail 30-600W
100Watts Quarter Brick Chassis Mount Railway DC-DC Converter Module
100W Isolated Output
Efficiency to 91%
Fixed Switching Frequency
4:1 Input Range
Regulated Outputs
Remote On/Off
Low No Load Power Consumption
Over Temperature Protection
Over Voltage/Current Protection
Continuous Short Circuit Protection
Build-In EMI Filter
Fire & Smoke Meets EN45545-2
Shock & Vibration Meets EN50155 (EN61373)
Safety Meets UL60950-1, EN60950-1 and IEC60950-1
UL60950-1 2nd (Basic Insulation) Approval for DC Modules
EN50155:2007 for EMC, Environmental and Characteristic
Datasheet|
MODEL |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT |
% EFF. | ||
| MIN. | MAX. | NO LOAD | FULL LOAD | ||||
| CQB100W-110S05□-CMFC CQB100W-110S05□-CMFD |
43-160 V | 5 V | 0 mA | 20.0 A | 15 mA | 1.03A | 89 |
| CQB100W-110S12□-CMFC CQB100W-110S12□-CMFD |
43-160 V | 12 V | 0 mA | 8.4 A | 15 mA | 1.01A | 91 |
| CQB100W-110S15□-CMFC CQB100W-110S15□-CMFD |
43-160 V | 15 V | 0 mA | 6.7 A | 15 mA | 1.01A | 91 |
| CQB100W-110S24□-CMFC CQB100W-110S24□-CMFD |
43-160 V | 24 V | 0 mA | 4.2 A | 15 mA | 1.04A | 88 |
| CQB100W-110S28□-CMFC CQB100W-110S28□-CMFD |
43-160 V | 28 V | 0 mA | 3.6 A | 15 mA | 1.04A | 88 |
| CQB100W-110S48□-CMFC CQB100W-110S48□-CMFD |
43-160 VDC | 48 VDC | 0 mA | 2.1 A | 15 mA | 1.02A | 89.5 |
Note:
- □ = N or None
