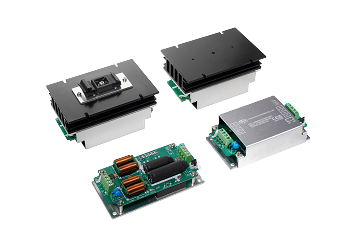

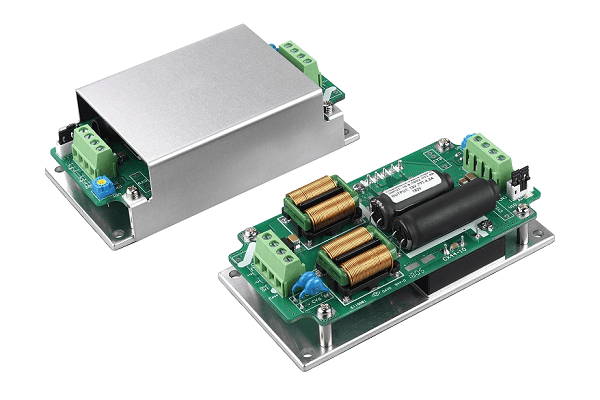

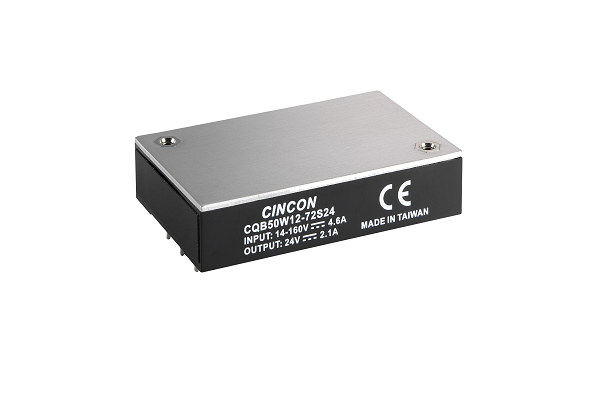

CQB50W12-72SXX-CMFC(D)
Chassis Mount / DIN Rail 20-750W
30-50Watts Quarter Brick Chassis Mount Railway DC-DC Converter Module
30-50W Isolated Output
Efficiency to 89%
Fixed Switching Frequency
12:1 Input Range
Regulated Outputs
Remote On/Off
Low No Load Power Consumption
Over Temperature Protection
Over Voltage/Current Protection
Continuous Short Circuit Protection
Shock & Vibration Meets EN50155 (EN61373)
Safety Meets UL/EN/IEC60950-1
UL60950-1 2nd Approval for DC Modules
EN50155:2007 for EMC and Environmental
EN50155:2007 for Characteristic
Build-In EMI Filter
Baseplate Cooled
Fire & Smoke Meets EN45545-2
Datasheet| Part Number |
Input | Output | Output Current | Input Current | % EFF | ||
| Min | Max | No Load | Full Load | ||||
| CQB50W12-72S05□-CMFC CQB50W12-72S05□-CMFD |
14-160V | 5V | 0mA | 6.0A | 8mA | 530mA | 83 |
| CQB50W12-72S12□-CMFC CQB50W12-72S12□-CMFD |
14-160V | 12V | 0mA | 4.2A | 8mA | 810mA | 87 |
| CQB50W12-72S24□-CMFC CQB50W12-72S24□-CMFD |
14-160V | 24V | 0mA | 2.1A | 8mA | 800mA | 89 |
| CQB50W12-72S48□-CMFC CQB50W12-72S48□-CMFD |
14-160V | 48V | 0mA | 1.05A | 12mA | 810mA | 88 |
Note:
- □ = N or None
