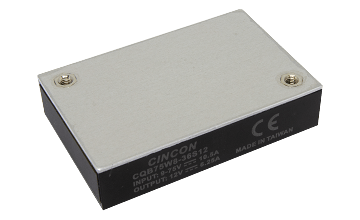

CQB75W8-36SXX-CMFC(D)

75Watts Quarter Brick Chassis Mount Railway DC-DC Converter Module

CQB75W8-36SXX-CMFC(D) 75Watts Quarter Brick Chassis Mount Railway DC-DC Converter Module

Efficiency Up to 90%

Fixed Switching Frequency

Regulated Outputs

Remote On/Off

Low No Load Power Consumption

Fully protected (OTP/OCP/OVP/UVLO)

3000Vac I/O Isolation

Operating Case Temperature -40 to +105℃

UL62368-1 2nd (Reinforce Insulation) Approval for DC Modules

EN50155 for EMC, Environmental and Characteristic

Shock & Vibration EN50155 (EN61373) Compliant

Fire & Smoke EN45545-2 Compliant

Safety Meets IEC/EN/UL 62368-1

Build-In EMI Filter

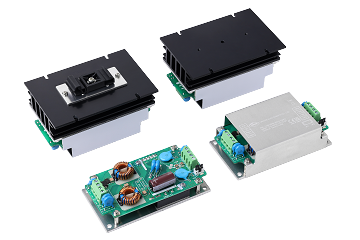

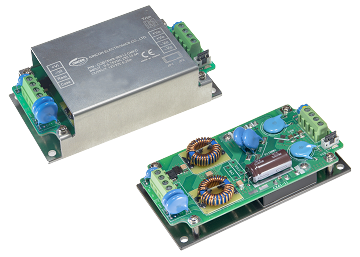

Chassis Mount, Baseplate Cooled

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
NEW CQB75W8-36S12-CMFC 9.5~75V 12V 6.25A 10mA 90 3000VAC
NEW CQB75W8-36S15-CMFC 9.5~75V 15V 5A 10mA 90 3000VAC
NEW CQB75W8-36S24-CMFC 9.5~75V 24V 3.12A 12mA 90 3000VAC
NEW CQB75W8-36S28-CMFC 9.5~75V 28V 2.67A 12mA 90 3000VAC
NEW CQB75W8-36S48-CMFC 9.5~75V 48V 1.56A 12mA 90 3000VAC
NEW CQB75W8-36S12-CMFD 9.5~75V 12V 6.25A 10mA 90 3000VAC
NEW CQB75W8-36S15-CMFD 9.5~75V 15V 5A 10mA 90 3000VAC
NEW CQB75W8-36S24-CMFD 9.5~75V 24V 3.12A 12mA 90 3000VAC
NEW CQB75W8-36S28-CMFD 9.5~75V 28V 2.67A 12mA 90 3000VAC
NEW CQB75W8-36S48-CMFD 9.5~75V 48V 1.56A 12mA 90 3000VAC
NEW CQB75W8-36S12N-CMFC 9.5~75V 12V 6.25A 10mA 90 3000VAC
NEW CQB75W8-36S15N-CMFC 9.5~75V 15V 5A 10mA 90 3000VAC
NEW CQB75W8-36S24N-CMFC 9.5~75V 24V 3.12A 12mA 90 3000VAC
NEW CQB75W8-36S28N-CMFC 9.5~75V 28V 2.67A 12mA 90 3000VAC
NEW CQB75W8-36S48N-CMFC 9.5~75V 48V 1.56A 12mA 90 3000VAC
NEW CQB75W8-36S12N-CMFD 9.5~75V 12V 6.25A 10mA 90 3000VAC
NEW CQB75W8-36S15N-CMFD 9.5~75V 15V 5A 10mA 90 3000VAC
NEW CQB75W8-36S24N-CMFD 9.5~75V 24V 3.12A 12mA 90 3000VAC
NEW CQB75W8-36S28N-CMFD 9.5~75V 28V 2.67A 12mA 90 3000VAC
NEW CQB75W8-36S48N-CMFD 9.5~75V 48V 1.56A 12mA 90 3000VAC
