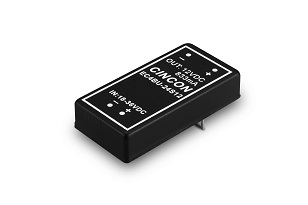

EC4BU

10Watts 2"x1" Isolated DC-DC Converter

EC4BU

10W Isolated Output

Efficiency to 87%

Meets EN55022 Class A Conductive

Input Under Voltage Protection

Continuous Short Circuit Protection

No Tantalum Capacitor Inside

Download File
Model List
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
EC4BU-24S33 18~36V 3.3V 2.5A 25mA 82 1500VDC
EC4BU-24S05 18~36V 5V 2A 25mA 85 1500VDC
EC4BU-24S12 18~36V 12V 0.833A 25mA 87 1500VDC
EC4BU-24S15 18~36V 15V 0.666A 25mA 87 1500VDC
EC4BU-24D05 18~36V ±5V ±1A 25mA 85 1500VDC
EC4BU-24D12 18~36V ±12V ±0.416A 25mA 87 1500VDC
EC4BU-24D15 18~36V ±15V ±0.333A 25mA 87 1500VDC
EC4BU-24S33T 18~36V 3.3V 2.5A 25mA 82 1500VDC
EC4BU-24S05T 18~36V 5V 2A 25mA 85 1500VDC
EC4BU-24S12T 18~36V 12V 0.833A 25mA 87 1500VDC
EC4BU-24S15T 18~36V 15V 0.666A 25mA 87 1500VDC
EC4BU-24D05T 18~36V ±5V ±1A 25mA 85 1500VDC
EC4BU-24D12T 18~36V ±12V ±0.416A 25mA 87 1500VDC
EC4BU-24D15T 18~36V ±15V ±0.333A 25mA 87 1500VDC
EC4BU-24S33A 18~36V 3.3V 2.5A 25mA 82 1500VDC
EC4BU-24S05A 18~36V 5V 2A 25mA 85 1500VDC
EC4BU-24S12A 18~36V 12V 0.833A 25mA 87 1500VDC
EC4BU-24S15A 18~36V 15V 0.666A 25mA 87 1500VDC
EC4BU-24S33AT 18~36V 3.3V 2.5A 25mA 82 1500VDC
EC4BU-24S05AT 18~36V 5V 2A 25mA 85 1500VDC
EC4BU-24S12AT 18~36V 12V 0.833A 25mA 87 1500VDC
EC4BU-24S15AT 18~36V 15V 0.666A 25mA 87 1500VDC
EC4BU-48S33 36~75V 3.3V 2.5A 20mA 81 1500VDC
EC4BU-48S05 36~75V 5V 2A 20mA 85 1500VDC
EC4BU-48S12 36~75V 12V 0.833A 20mA 87 1500VDC
EC4BU-48S15 36~75V 15V 0.666A 20mA 87 1500VDC
EC4BU-48D05 36~75V ±5V ±1A 20mA 85 1500VDC
EC4BU-48D12 36~75V ±12V ±0.416A 20mA 87 1500VDC
EC4BU-48D15 36~75V ±15V ±0.333A 20mA 87 1500VDC
EC4BU-48S33T 36~75V 3.3V 2.5A 20mA 81 1500VDC
EC4BU-48S05T 36~75V 5V 2A 20mA 85 1500VDC
EC4BU-48S12T 36~75V 12V 0.833A 20mA 87 1500VDC
EC4BU-48S15T 36~75V 15V 0.666A 20mA 87 1500VDC
EC4BU-48D05T 36~75V ±5V ±1A 20mA 85 1500VDC
EC4BU-48D12T 36~75V ±12V ±0.416A 20mA 87 1500VDC
EC4BU-48D15T 36~75V ±15V ±0.333A 20mA 87 1500VDC
EC4BU-48S33A 36~75V 3.3V 2.5A 20mA 81 1500VDC
EC4BU-48S05A 36~75V 5V 2A 20mA 85 1500VDC
EC4BU-48S12A 36~75V 12V 0.833A 20mA 87 1500VDC
EC4BU-48S15A 36~75V 15V 0.666A 20mA 87 1500VDC
EC4BU-48S33AT 36~75V 3.3V 2.5A 20mA 81 1500VDC
EC4BU-48S05AT 36~75V 5V 2A 20mA 85 1500VDC
EC4BU-48S12AT 36~75V 12V 0.833A 20mA 87 1500VDC
EC4BU-48S15AT 36~75V 15V 0.666A 20mA 87 1500VDC
EC4BU-05S33 4.7~9V 3.3V 2.5A 120mA 87 1500VDC
EC4BU-05S05 4.7~9V 5V 2A 120mA 87 1500VDC
EC4BU-05S12 4.7~9V 12V 0.833A 50mA 87 1500VDC
EC4BU-05S15 4.7~9V 15V 0.666A 50mA 87 1500VDC
EC4BU-05D05 4.7~9V ±5V ±1A 50mA 85 1500VDC
EC4BU-05D12 4.7~9V ±12V ±0.416A 50mA 87 1500VDC
EC4BU-05D15 4.7~9V ±15V ±0.333A 50mA 87 1500VDC
EC4BU-05S33T 4.7~9V 3.3V 2.5A 120mA 87 1500VDC
EC4BU-05S05T 4.7~9V 5V 2A 120mA 87 1500VDC
EC4BU-05S12T 4.7~9V 12V 0.833A 50mA 87 1500VDC
EC4BU-05S15T 4.7~9V 15V 0.666A 50mA 87 1500VDC
EC4BU-05D05T 4.7~9V ±5V ±1A 50mA 85 1500VDC
EC4BU-05D12T 4.7~9V ±12V ±0.416A 50mA 87 1500VDC
EC4BU-05D15T 4.7~9V ±15V ±0.333A 50mA 87 1500VDC
EC4BU-05S33A 4.7~9V 3.3V 2.5A 120mA 87 1500VDC
EC4BU-05S05A 4.7~9V 5V 2A 120mA 87 1500VDC
EC4BU-05S12A 4.7~9V 12V 0.833A 50mA 87 1500VDC
EC4BU-05S15A 4.7~9V 15V 0.666A 50mA 87 1500VDC
EC4BU-05S33AT 4.7~9V 3.3V 2.5A 120mA 87 1500VDC
EC4BU-05S05AT 4.7~9V 5V 2A 120mA 87 1500VDC
EC4BU-05S12AT 4.7~9V 12V 0.833A 50mA 87 1500VDC
EC4BU-05S15AT 4.7~9V 15V 0.666A 50mA 87 1500VDC
EC4BU-12S33 9~18V 3.3V 2.5A 30mA 82 1500VDC
EC4BU-12S05 9~18V 5V 2A 30mA 85 1500VDC
EC4BU-12S12 9~18V 12V 0.833A 35mA 87 1500VDC
EC4BU-12S15 9~18V 15V 0.666A 35mA 87 1500VDC
EC4BU-12D05 9~18V ±5V ±1A 45mA 85 1500VDC
EC4BU-12D12 9~18V ±12V ±0.416A 45mA 87 1500VDC
EC4BU-12D15 9~18V ±15V ±0.333A 45mA 87 1500VDC
EC4BU-12S33T 9~18V 3.3V 2.5A 30mA 82 1500VDC
EC4BU-12S05T 9~18V 5V 2A 30mA 85 1500VDC
EC4BU-12S12T 9~18V 12V 0.833A 35mA 87 1500VDC
EC4BU-12S15T 9~18V 15V 0.666A 35mA 87 1500VDC
EC4BU-12D05T 9~18V ±5V ±1A 45mA 85 1500VDC
EC4BU-12D12T 9~18V ±12V ±0.416A 45mA 87 1500VDC
EC4BU-12D15T 9~18V ±15V ±0.333A 45mA 87 1500VDC
EC4BU-12S33A 9~18V 3.3V 2.5A 30mA 82 1500VDC
EC4BU-12S05A 9~18V 5V 2A 30mA 85 1500VDC
EC4BU-12S12A 9~18V 12V 0.833A 35mA 87 1500VDC
EC4BU-12S15A 9~18V 15V 0.666A 35mA 87 1500VDC
EC4BU-12S33AT 9~18V 3.3V 2.5A 30mA 82 1500VDC
EC4BU-12S05AT 9~18V 5V 2A 30mA 85 1500VDC
EC4BU-12S12AT 9~18V 12V 0.833A 35mA 87 1500VDC
EC4BU-12S15AT 9~18V 15V 0.666A 35mA 87 1500VDC
