ECLB60W

60Watts 4:1 Input Range 2"x1.2" Isolated DC-DC Converter

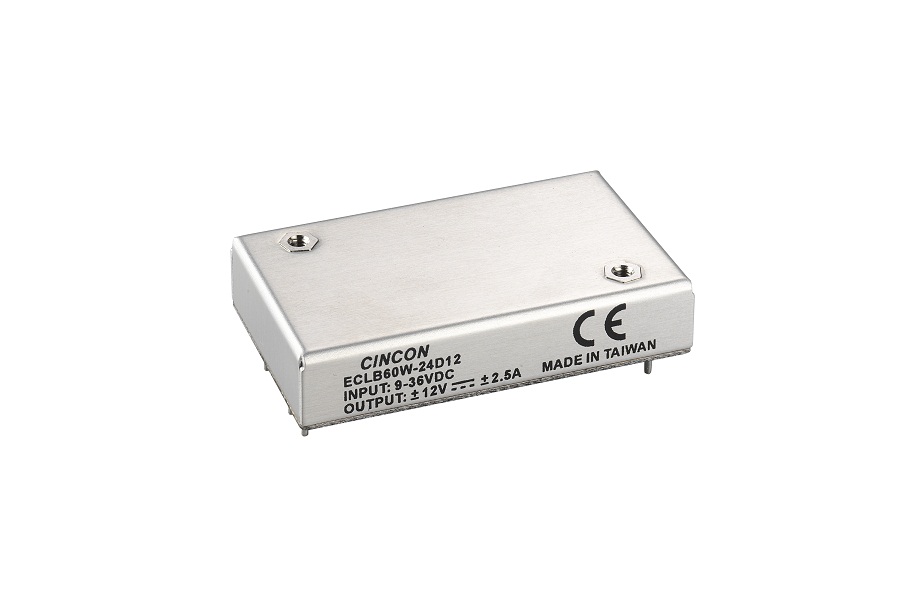

ECLB60W 60Watts 4:1 Input Range 2"x1.2" Isolated DC-DC Converter

Efficiency Up to 92%

Fixed Switching Frequency

Regulated Outputs

Remote On/Off

Low No Load Power Consumption

Fully protected (OTP/OCP/OVP/UVLO)

1500Vdc I/O Isolation

Operating Case Temperature -40 to +105℃

2.05’’x1.2”x0.4’’ Six-Sided Shield Metal Case Standard 2”X1” Pin Out Compatible

Safety Meets IEC/EN/UL 62368-1

Full Load Operation up to 60℃ with Heat Sink LBT127 (M-C655) Natural Convection

-55℃ Operating Available (Suffix “-M2”)

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
  ECLB60W-48S33 18~75V 3.3V 15A 8mA 90.5 1500VDC
  ECLB60W-48S05 18~75V 5V 12A 8mA 92 1500VDC
  ECLB60W-48S12 18~75V 12V 5A 8mA 92 1500VDC
  ECLB60W-48S15 18~75V 15V 4A 8mA 91 1500VDC
  ECLB60W-48D12 18~75V ±12V ±2.5A 8mA 91 1500VDC
  ECLB60W-48D15 18~75V ±15V ±2A 8mA 91 1500VDC
  ECLB60W-48S33N 18~75V 3.3V 15A 8mA 90.5 1500VDC
  ECLB60W-48S05N 18~75V 5V 12A 8mA 92 1500VDC
  ECLB60W-48S12N 18~75V 12V 5A 8mA 92 1500VDC
  ECLB60W-48S15N 18~75V 15V 4A 8mA 91 1500VDC
  ECLB60W-48D12N 18~75V ±12V ±2.5A 8mA 91 1500VDC
  ECLB60W-48D15N 18~75V ±15V ±2A 8mA 91 1500VDC
  ECLB60W-24S33 9~36V 3.3V 15A 10mA 90 1500VDC
  ECLB60W-24S05 9~36V 5V 12A 10mA 92 1500VDC
  ECLB60W-24S12 9~36V 12V 5A 10mA 92 1500VDC
  ECLB60W-24S15 9~36V 15V 4A 10mA 91 1500VDC
  ECLB60W-24D12 9~36V ±12V ±2.5A 12mA 91 1500VDC
  ECLB60W-24D15 9~36V ±15V ±2A 12mA 91 1500VDC
  ECLB60W-24S33N 9~36V 3.3V 15A 10mA 90 1500VDC
  ECLB60W-24S05N 9~36V 5V 12A 10mA 92 1500VDC
  ECLB60W-24S12N 9~36V 12V 5A 10mA 92 1500VDC
  ECLB60W-24S15N 9~36V 15V 4A 10mA 91 1500VDC
  ECLB60W-24D12N 9~36V ±12V ±2.5A 12mA 91 1500VDC
  ECLB60W-24D15N 9~36V ±15V ±2A 12mA 91 1500VDC
