TR18RDM

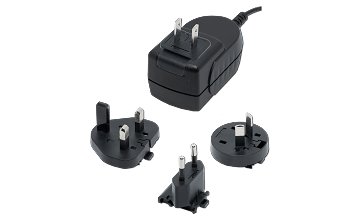

18Watts AC-DC Medical Interchangeable Plug Wall-mount Power Adapter

TR18RDM

Universal Input Range 80~264VAC

Interchangeable AC Plugs

Leakage Current < 30uA

Over Voltage Protection

Continuous Short Circuit Protection

No Load Power Consumption<75mW

Approved EN55011, FCC CFR47 Part 18 Class B

Approved EN60601-1-11 for Home Healthcare Applications

Meets IP22

Meets 2MOPP Class II

Meets EN60335-1

Meets CoC Tier 2 & DoE Level VI

(Output Cable Length≦1800mm)

Download File
Model List
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
TR18RDM050 15W 80-264 5V 3A 81.84% 5000m -30°C ~ 70°C
TR18RDM090 18W 80-264 9V 2A 85.45% 5000m -30°C ~ 70°C
TR18RDM120 18W 80-264 12V 1.5A 85.45% 5000m -30°C ~ 70°C
TR18RDM150 18W 80-264 15V 1.2A 85.45% 5000m -30°C ~ 70°C
TR18RDM180 18W 80-264 18V 1A 85.45% 5000m -30°C ~ 70°C
TR18RDM240 18W 80-264 24V 0.75A 85.45% 5000m -30°C ~ 70°C
