TR30RDM

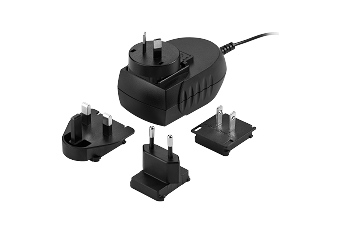

30Watts AC-DC Medical Interchangeable Plug Wall-mount Power Adapter
Universal Input Range 80~264Vac
High Efficiency up to 88%
Interchangeable AC Plugs
Leakage Current < 50uA
Class II
No Load Power Consumption < 75mW
Approval IEC/EN/UL 60601-1 2 MOPP
Approval EN60601-1-11 for Home Healthcare Applications
Approval EN 55011, FCC 47 CFR Part 18 Class B
Approval IP22
Meets IEC/EN 60335-1
Operating Altitude 5000m
Over Voltage Protection
Continuous Short Circuit Protection
Meets CoC Tier 2 & DoE Level VI
Datasheet| Part Number | Power (Watts) | Input Voltage | Output Voltage | Output Current | Efficiency (%) | Operating Altitude | Operating Temperature | Package | Datasheet | Find stock | RFQ | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TR30RDM050 | 25W | 80-264 | 5V | 5.0 A | 84% | 5000m | -25°C ~ 70°C | Wall-Mount (Interchangeable plug) |

|
  Stock |
  RFQ |
|
|
TR30RDM090 | 29.7W | 80-264 | 9V | 3.3 A | 88% | 5000m | -25°C ~ 70°C | Wall-Mount (Interchangeable plug) |
|
Stock |
RFQ |
|
|
TR30RDM120 | 30W | 80-264 | 12V | 2.5 A | 88% | 5000m | -25°C ~ 70°C | Wall-Mount (Interchangeable plug) |
|
Stock |
RFQ |
|
|
TR30RDM150 | 30W | 80-264 | 15V | 2.0 A | 88% | 5000m | -25°C ~ 70°C | Wall-Mount (Interchangeable plug) |
|
Stock |
RFQ |
|
|
TR30RDM180 | 30.06W | 80-264 | 18V | 1.67 A | 88% | 5000m | -25°C ~ 70°C | Wall-Mount (Interchangeable plug) |
|
Stock |
RFQ |
|
|
TR30RDM240 | 30W | 80-264 | 24V | 1.25 A | 88% | 5000m | -25°C ~ 70°C | Wall-Mount (Interchangeable plug) |
|
Stock |
RFQ |
Cincon Class 2 medical power supply, ac adapter － TR30RDM
The TR30RDM series is our new 30 watts miniature wall mount class II medical power supply/ac adaptor and universal input Range from 80~264VAC. It is IEC/UL 60601 approved, meets EN60335, DoE Level VI and CoC Tier 2 standards. It is available in 6 different outputs of 5, 9, 12, 15, 18, and 24VDC, and optional interchangeable US, EU, UK, and AUS AC plugs.
The class 2 medical power supply offers an extraordinarily high efficiency up to 88%, and a wide operating temperature -20°C to +70°C, it can go as high as +40°C at full power rating, which covers most of the extreme environments. All models are suitable for BF rated medical equipment, 2MOPP and very low leakage current under 50μA. The power adaptor can be used at high altitude up to 5000m max.
The average efficiency of the power supply is greater than 87.7% which meets the new DoE energy efficiency level VI (US) and CoC Tier 2 requirements in the EU. It also features a low no load input power consumption less than 75 mW.
Fully protected against output over-current, output over-voltage and continuous short circuit conditions. It has IEC60601-1, EN60601-1, ANSI/AAMI ES60601-1 2MOPP medical safety and EN60601-1-11 approved for home healthcare application. Waterproof meets IP22 protection. In addition, all models meet EN60601-1-2 Ed4, EN55011 Class B, FCC Part 18 Class B emissions and immunity standards.
