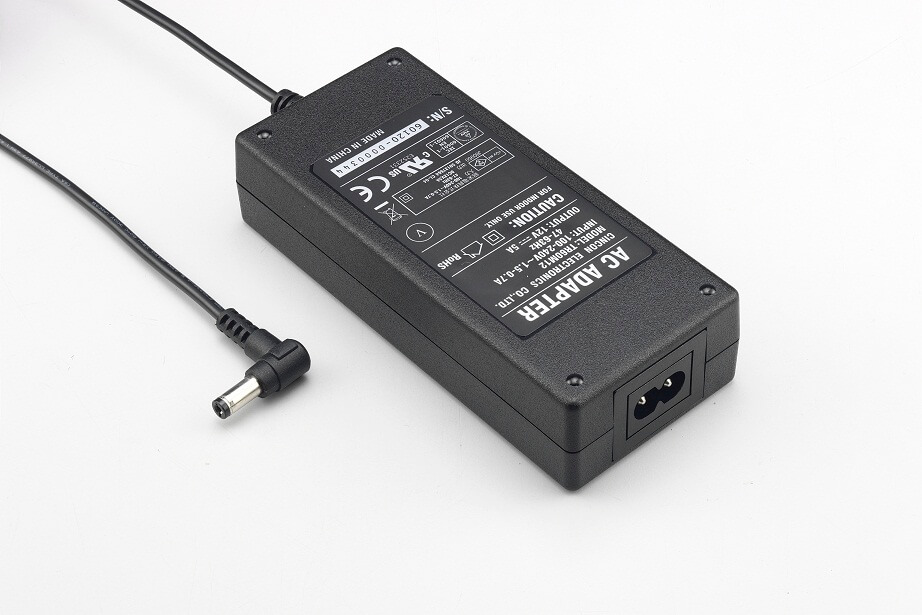

60Watts AC-DC Medical C8 Desktop Power Adapter

TR60M 60Watts AC-DC Medical C8 Desktop Power Adapter

Universal Input Range 90~264Vac

High Efficiency up to 88%

Class II

Approval IEC/EN/UL 60601-1 2 MOPP

Approval EN55011 and CISPR/FCC Class B

Operating Altitude 3000m

Continuous Short Circuit Protection

Over Voltage Protection

Meets CEC Level V (except 5V)

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
  TR60M05 30W 90-264 5V 6A 75% 3000m 0°C ~ 60°C
  TR60M12 60W 90-264 12V 5A 85% 3000m 0°C ~ 60°C
  TR60M15 60W 90-264 15V 4A 87% 3000m 0°C ~ 60°C
  TR60M18 59.94W 90-264 18V 3.33A 87% 3000m 0°C ~ 60°C
  TR60M19 59.85W 90-264 19V 3.15A 87% 3000m 0°C ~ 60°C
  TR60M24 60W 90-264 24V 2.5A 88% 3000m 0°C ~ 60°C
  TR60M36 59.76W 90-264 36V 1.66A 88% 3000m 0°C ~ 60°C
  TR60M48 60W 90-264 48V 1.25A 88% 3000m 0°C ~ 60°C
