CFM10

10Watts AC-DC ITE Open Frame Power Supply

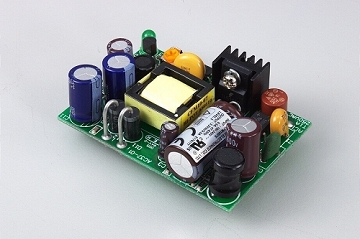

CFM10 10Watts AC-DC ITE Open Frame Power Supply

*EOL Effective Date: Dec/31/2022*

Universal Input Range 85~264VAC

Efficiency to 77%

Meets EN55032 Class B

Approved IEC/EN/UL62368-1

Continuous Short Circuit Protection

Leakage Current 0.25mA Max.

PCB Mountable

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
NRND CFM1001S 10W 85-264 5V 2A 73% 2000m 0°C ~ 70°C
NRND CFM1002S 10.08W 85-264 12V 0.84A 76% 2000m 0°C ~ 70°C
NRND CFM1003S 10.05W 85-264 15V 0.67A 76% 2000m 0°C ~ 70°C
NRND CFM1005S 10.08W 85-264 24V 0.42A 77% 2000m 0°C ~ 70°C
NRND CFM1007S 8.25W 85-264 3.3V 2.5A 67% 2000m 0°C ~ 70°C
NRND CFM1009S 10.08W 85-264 9V 1.12A 72% 2000m 0°C ~ 70°C
