CFM40S

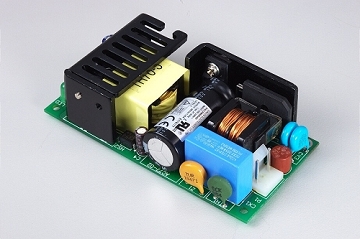

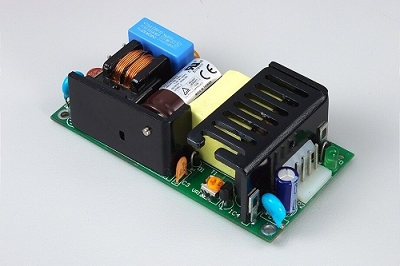

40Watts AC-DC 2"x4" ITE Open Frame Power Supply

CFM40S  40Watts AC-DC 2"x4" ITE Open Frame Power Supply

Universal Input Range 90~264VAC

2”x 4” Size

Industry Standard Pin Out

Efficiency to 87%

Continuous Short Circuit Protection

Meets EN55032 Class B and CISPR/FCC Class B

Approved IEC/EN/UL62368-1

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
  CFM40S033 19.8W 90-264 3.3V 6A 70% 2000m 0°C ~ 70°C
  CFM40S050 30W 90-264 5V 6A 76% 2000m 0°C ~ 70°C
  CFM40S090 40.05W 90-264 9V 4.45A 84% 2000m 0°C ~ 70°C
  CFM40S120 40.08W 90-264 12V 3.34A 85% 2000m 0°C ~ 70°C
  CFM40S150 40.05W 90-264 15V 2.67A 85% 2000m 0°C ~ 70°C
  CFM40S240 40.08W 90-264 24V 1.67A 85% 2000m 0°C ~ 70°C
  CFM40S300 39.9W 90-264 30V 1.33A 86% 2000m 0°C ~ 70°C
  CFM40S360 39.96W 90-264 36V 1.11A 87% 2000m 0°C ~ 70°C
  CFM40S480 40.032W 90-264 48V 0.834A 87% 2000m 0°C ~ 70°C
  CFM40S033-CA 19.8W 90-264 3.3V 6A 70% 2000m 0°C ~ 70°C
  CFM40S050-CA 30W 90-264 5V 6A 76% 2000m 0°C ~ 70°C
  CFM40S090-CA 40.05W 90-264 9V 4.45A 84% 2000m 0°C ~ 70°C
  CFM40S120-CA 40.08W 90-264 12V 3.34A 85% 2000m 0°C ~ 70°C
  CFM40S150-CA 40.05W 90-264 15V 2.67A 85% 2000m 0°C ~ 70°C
  CFM40S240-CA 40.08W 90-264 24V 1.67A 85% 2000m 0°C ~ 70°C
  CFM40S300-CA 39.9W 90-264 30V 1.33A 86% 2000m 0°C ~ 70°C
  CFM40S360-CA 39.96W 90-264 36V 1.11A 87% 2000m 0°C ~ 70°C
  CFM40S480-CA 40.032W 90-264 48V 0.834A 87% 2000m 0°C ~ 70°C
  CFM40S033-P 19.8W 90-264 3.3V 6A 70% 2000m 0°C ~ 70°C
  CFM40S050-P 30W 90-264 5V 6A 76% 2000m 0°C ~ 70°C
  CFM40S090-P 40.05W 90-264 9V 4.45A 84% 2000m 0°C ~ 70°C
  CFM40S120-P 40.08W 90-264 12V 3.34A 85% 2000m 0°C ~ 70°C
  CFM40S150-P 40.05W 90-264 15V 2.67A 85% 2000m 0°C ~ 70°C
  CFM40S240-P 40.08W 90-264 24V 1.67A 85% 2000m 0°C ~ 70°C
  CFM40S300-P 39.9W 90-264 30V 1.33A 86% 2000m 0°C ~ 70°C
  CFM40S360-P 39.96W 90-264 36V 1.11A 87% 2000m 0°C ~ 70°C
  CFM40S480-P 40.032W 90-264 48V 0.834A 87% 2000m 0°C ~ 70°C
