CFM80S

80Watts AC-DC 2"x4" ITE Open Frame Power Supply

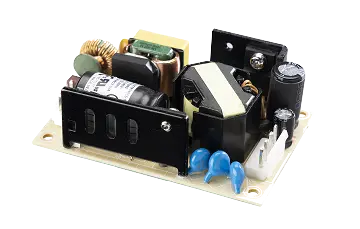

CFM80S 80Watts AC-DC 2"x4" ITE Open Frame Power Supply

Universal Input 90 - 264VAC

2" x 4" Size

Meet EN61000-3-2 Class A

Meet EN55032 Class B

Meet CISPR / FCC Class B

Short Circuit Protection

No load power consumption < 0.5W

Efficiency 90%

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
  CFM80S050 60W 90-264 5V 12A 86% 2000m -20°C ~ 80°C
  CFM80S120 80.4W 90-264 12V 6.7A 89% 2000m -20°C ~ 80°C
  CFM80S150 80.4W 90-264 15V 5.36A 90% 2000m -20°C ~ 80°C
  CFM80S240 80.4W 90-264 24V 3.35A 90% 2000m -20°C ~ 80°C
  CFM80S480 80.16W 90-264 48V 1.67A 90% 2000m -20°C ~ 80°C
