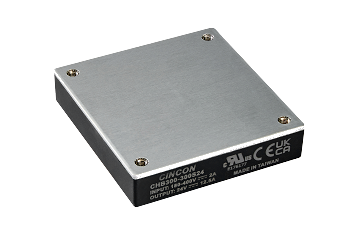

CHB300-300S

300Watts Half Brick DC-DC Converter Input Voltage 180-425VDC

Efficiency Up to 90%

Fixed Switching Frequency

Regulated Outputs

Remote On/Off

Fully protected (OTP/OCP/OVP/UVLO)

3000Vac I/O Isolation

Operating Case Temperature -40 to +100℃

Half Brick Size Meet Industrial Standard 2.28x2.40x0.50

CB Test Certificate IEC60950-1

UL60950-1(Reinforce Insulation) Approval

Safety Meets IEC/EN/UL 62368-1

Shock & Vibration MIL-STD-810F(EN61373) Compliant

Fire & Smoke EN45545-2 Compliant

2000m Operating Altitude

-55℃ Operating Available (Suffix “-M2”)

Download File

Part Number	Input Voltage	Output Voltage	Output Current	No load Input Current	Efficiency (%)	I/O Isolation Voltage	Package	Find stock	RFQ
CHB300-300S05	180~425V	5V	60A	10mA	89	3000VAC	Half Brick	Stock	RFQ
CHB300-300S12	180~425V	12V	25A	10mA	88	3000VAC	Half Brick	Stock	RFQ
CHB300-300S24	180~425V	24V	12.5A	10mA	90	3000VAC	Half Brick	Stock	RFQ
CHB300-300S28	180~425V	28V	10.7A	10mA	90	3000VAC	Half Brick	Stock	RFQ
CHB300-300S48	180~425V	48V	6.25A	10mA	90	3000VAC	Half Brick	Stock	RFQ
CHB300-300S05N	180~425V	5V	60A	10mA	89	3000VAC	Half Brick	Stock	RFQ
CHB300-300S12N	180~425V	12V	25A	10mA	88	3000VAC	Half Brick	Stock	RFQ
CHB300-300S24N	180~425V	24V	12.5A	10mA	90	3000VAC	Half Brick	Stock	RFQ
CHB300-300S28N	180~425V	28V	10.7A	10mA	90	3000VAC	Half Brick	Stock	RFQ
CHB300-300S48N	180~425V	48V	6.25A	10mA	90	3000VAC	Half Brick	Stock	RFQ
