CQB50W8-36SXX-CMFC(D)

Share on

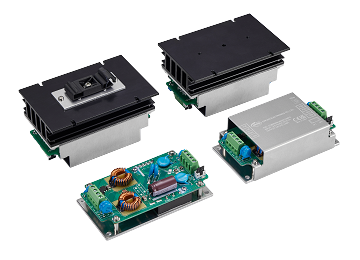

50Watts Quarter Brick Chassis Mount Railway DC-DC Converter Module

Efficiency Up to 90%

Fixed Switching Frequency

Regulated Outputs

Remote On/Off

Low No Load Power Consumption

Fully Protected (OTP/OCP/OVP/UVLO)

3000Vac I/O Isolation

Operating Case Temperature -40 to +105℃

UL 62368-1 2nd (Reinforce Insulation) Approval for DC Modules

EN 50155 for EMC, Environmental and Characteristic

Shock & Vibration EN 50155 (EN 61373) Compliant

Fire & Smoke EN 45545-2 Compliant

Safety Meets IEC/EN/UL 62368-1

Build-In EMI Filter

Chassis Mount, Baseplate Cooled

Download File

Part Number	Input Voltage	Output Voltage	Output Current	No load Input Current	Efficiency (%)	I/O Isolation Voltage	Package	Find stock	RFQ
CQB50W8-36S12-CMFC	9.5~75V	12V	4.17A	10mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S15-CMFC	9.5~75V	15V	3.33A	10mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S24-CMFC	9.5~75V	24V	2.08A	12mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S28-CMFC	9.5~75V	28V	1.79A	12mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S48-CMFC	9.5~75V	48V	1.05A	12mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S12-CMFD	9.5~75V	12V	4.17A	10mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S15-CMFD	9.5~75V	15V	3.33A	10mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S24-CMFD	9.5~75V	24V	2.08A	12mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S28-CMFD	9.5~75V	28V	1.79A	12mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S48-CMFD	9.5~75V	48V	1.05A	12mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S12N-CMFC	9.5~75V	12V	4.17A	10mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S15N-CMFC	9.5~75V	15V	3.33A	10mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S24N-CMFC	9.5~75V	24V	2.08A	12mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S28N-CMFC	9.5~75V	28V	1.79A	12mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S48N-CMFC	9.5~75V	48V	1.05A	12mA	90	3000VAC	4.60”x2.40"x1.46”	Stock	RFQ
CQB50W8-36S12N-CMFD	9.5~75V	12V	4.17A	10mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S15N-CMFD	9.5~75V	15V	3.33A	10mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S24N-CMFD	9.5~75V	24V	2.08A	12mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S28N-CMFD	9.5~75V	28V	1.79A	12mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
CQB50W8-36S48N-CMFD	9.5~75V	48V	1.05A	12mA	90	3000VAC	4.60”x2.49"x1.46”	Stock	RFQ
