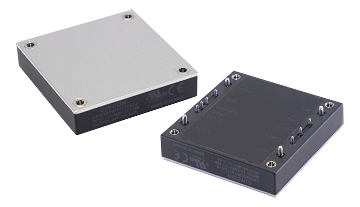

CHB200W12

200Watts 14-160VDC 12:1 Input Half Brick Railway DC-DC Converter

CHB200W12 200Watts 14-160VDC 12:1 Input Half Brick Railway DC-DC Converter

Efficiency Up to 90%

Fixed Switching Frequency

Regulated Outputs

Remote On/Off

Fully protected (OTP/OCP/OVP/UVLO)

3000Vac I/O Isolation

Operating Case Temperature -40 to +100℃

Half Brick Size Meet Industrial Standard 2.28x2.40x0.50

CB Test Certificate IEC62368-1

EN50155 Compliant with External Circuits

UL62368-1 2nd (Reinforce Insulation) Approval

Shock & Vibration EN50155 (EN61373) Compliant

Fire & Smoke EN45545-2 Compliant

5000m Operating Altitude

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage
NEW CHB200W12-72S12 14~160V 12V 16.7A 50mA 90 3000VAC
NEW CHB200W12-72S15 14~160V 15V 13.5A 50mA 90 3000VAC
NEW CHB200W12-72S24 14~160V 24V 8.4A 50mA 88 3000VAC
NEW CHB200W12-72S48 14~160V 48V 4.2A 50mA 89 3000VAC
NEW CHB200W12-72S12N 14~160V 12V 16.7A 50mA 90 3000VAC
NEW CHB200W12-72S15N 14~160V 15V 13.5A 50mA 90 3000VAC
NEW CHB200W12-72S24N 14~160V 24V 8.4A 50mA 88 3000VAC
NEW CHB200W12-72S48N 14~160V 48V 4.2A 50mA 89 3000VAC
