Non-Isolation 0.666-20A

Non-Isolation 0.666-20A

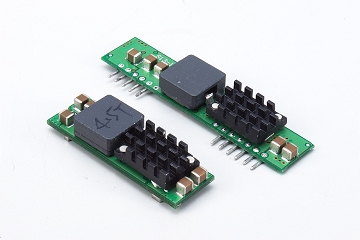

Cincon provides non-isolated point-of-load(POL) DC/DC converters featuring wide input voltage, output voltage capability, high efficiency and low profile package.

Non-Isolated
Model Power Input Voltage Output Voltage Features Dimensions (Inch)

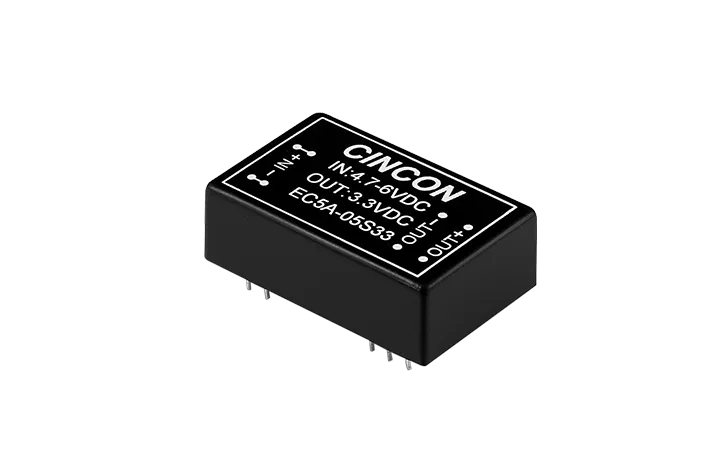

    EC5A 0.666~2A 4.7~6V, 9~32V, 16~32V, 19~32V 3.3V, 5V, 12V, 15V DIP-24/SMD 1.25x0.80x0.40(DIP)
1.25x0.80x0.45(SMD)
    SIP05-12 5A 8.3~14V 0.75~5V Output 5A
UL60950-1
0.90x0.400x0.22
    SIP05-05 5A 3.0~5.5V 0.75~3.3V Output 5A
UL60950-1
0.90x0.400x0.22
    SMT05-05 5A 3.0~5.5V 0.75~3.3V Output 5A
UL60950-1
0.80x0.450x0.24
    SMT05-12 5A 8.3~14V 0.75~5V Output 5A
UL60950-1
0.80x0.450x0.24
    SIP10-05 10A 3.0~5.5V, 4.5~5.5V 1.0V, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 3.3V Output 10A
UL60950-1
2.00x0.327x0.52
    SIP10-12 10A 8.3~14V, 9~14V 0.75~5V, 1.0V, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 3.3V, 5V Output 10A
UL60950-1
2.00x0.512x0.327
    SIP10W-12 10A 6.0~14V 0.7525~5V Output 10A
UL60950-1
2.00x0.510x0.327
    SMT10-05 10A 3.0~5.5V, 4.5~5.5V 1.0V, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 3.3V Output 10A
UL60950-1
1.30x0.530x0.366
    SMT10W-12 10A 6.0~14V 0.7525~5V Output 10A
UL60950-1
1.30x0.530x0.366
    SIP15-05 15A 3.0~5.5V 1.0~3.3V Output 15A
UL60950-1
2.00x0.327x0.52
    SMT15-05 15A 3.0~5.5V 1.0~3.3V Output 15A
UL60950-1
1.30x0.530x0.366
    SIP16-12 16A 9~14V 0.75~5V Output 16A
UL60950-1
2.00x0.512x0.327
    SIP16W-12 16A 6~14V 0.7525~5V Output 16A
UL60950-1
2.00x0.510x0.327
    SMT16-12 16A 9~14V 0.75~5V Output 16A
UL60950-1
1.30x0.530x0.366
    SMT16W-12 16A 6~14V 0.7525~5V Output 16A
UL60950-1
1.30x0.530x0.346
    SIP20W-12 20A 6~14V 0.7525~5V Output 20A
UL60950-1
2.40x0.510x0.327
    SMT20W-12 20A 6~14V 0.7525~5V Output 20A
UL60950-1
1.70x0.530x0.366
